About This File
Operator manual #810302R1 or #810302 R1
Wiring
34 pages 3.49MB

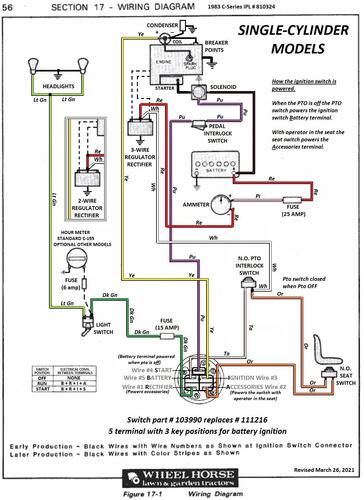

Single-cylinder Wiring Color pdf
1 page 429KB

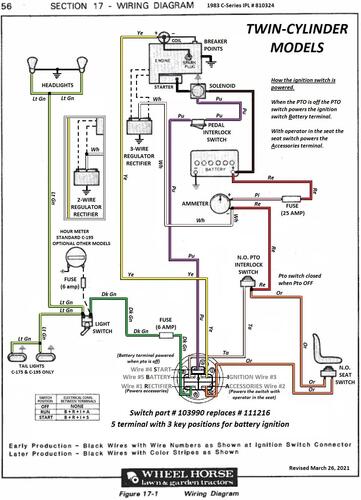

Twin-cylinder Wiring Color pdf
1 page 424KB

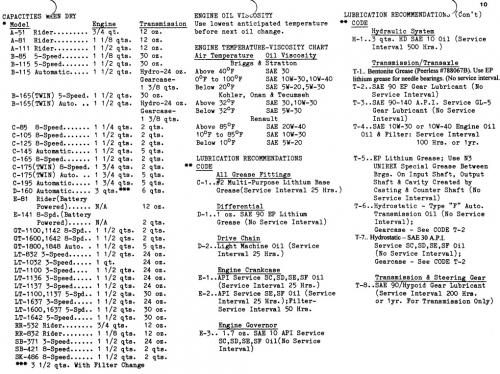

Lube chart SS
1983 C-85 8-speed model 11-08K801
1983 C-105 8-speed model 11-10K801
1983 C-125 8-speed model 11-12K801
1983 C-145 Auto model 01-14KE04
1983 C-175 Twin 8-speed model 11-17K801
1983 C-175 Twin Auto model 01-17KE03
1983 C-195 Twin Auto model 01-19KE01 - Rumor has 501 C-195's built 1982-83 and 155 in 1984.
How the ignition switch works.
When the pto is OFF the pto switch powers the Battery terminal of the ignition switch.
With operator in the seat the seat switch powers the Accessory terminal of the ignition switch.
There is no direct connection to the battery.
A link to the detailed wiring diagrams
