About This File
IPL from Toro Master Parts Viewer
8 pages 912.26KB
Wiring Color pdf
1 page 311KB
Long frame 45-1/2" wheelbase
(Early production model 1-7931 uses 5054 transaxle with 2-pinion bevel gear differential and 1-1/8" axles)
Late production uses 5062 transaxle with 10-pinion limited slip differential and 1-1/8" axles
5955 hydro pump gasket nla - 102759 gasket should work
Tractor drive belt # 7478 replaces # 4535 - (HB/5L x 84.22" or 5/8" x 84.22")

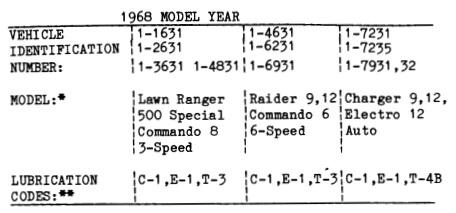

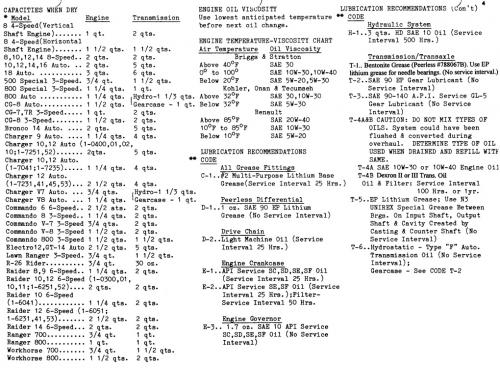

Lube chart SS
Details & Attachments
3 pages 116.55KB
1968 Charger 9 model 1-7932
