About This File
Operator manual #A-7137
IPL - Wrong drive belt length
4 pages
Dated 8/9//63
Fits all except Lawn Ranger, 953 and 1054
Requires 6051 kit to fit 875, 1045, 1055 and 1075
First model to use latches to mount the mower in the frame plates.
Drive belt 1577 replaced by 7430 (1/2" x 28") - [Incorrectly described as a 37" belt in this parts list]
Spindle belts 1578 (3/8" x 37" matched pair)
8014 2-blade set replaces 4116 and 7906 right blades, 4117 and 7907 left blades and 2-blade set 101522
Mower Rotary 1964 36in RD model RM-364

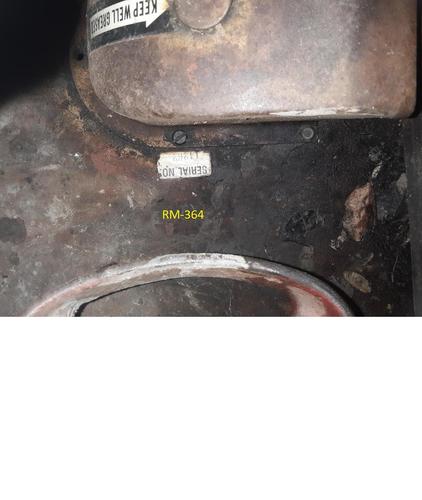

1964 serial numbers that have shown up for the RM-364
A-59226
A-59750
009500
011268
013912
014262
Mower Rotary 1965 36in RD model RM-364
1965 serial numbers that have shown up for the RM-364
122712
156470
156966
