About This File
Operator manual #803451R2 or 803451 R22
4 pages 3.12MB

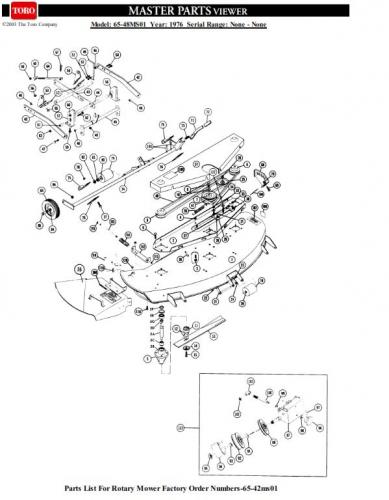

IPL from Toro Master Parts Viewer
3 pages 202.12KB
Fits C-Series tractors
Drive belt 102742 replaced by 94-2501 (1/2" x 103")
Spindle belt 1594 (1/2" x 107.21")

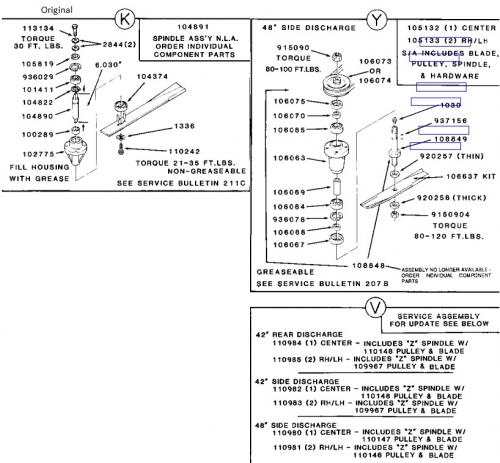

Mower spindle assemblies could be K, V, Y or Z
For V and Y see service bulletin 292B
4380 blade replaced by 6758 and then by 100202 3-blade kit and no longer available (Hole 5/8in.x3/4in. Double-D)
Mower Rotary 1976 48in SD model 65-48MS01
1976 serial numbers that have shown up for the 65-48MS01
006329
019103 - Build date 1976 6121 April 30 Friday
