About This File

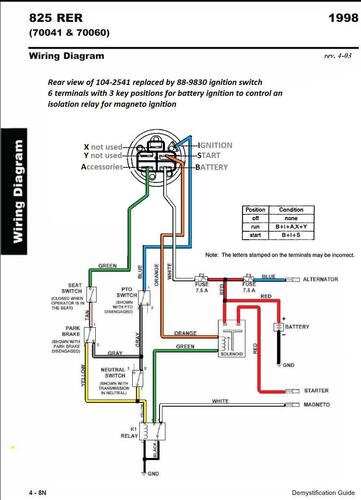

Detailed wiring from the Demystification Guide #492-4509
6 pages 514.71KB
p4-8M to p4-8R
1998 8-25 Rear Engine Rider model 70041 Recycler Serial 8900001-8999999
1998 8-25 Rear Engine Rider model 70060 Serial 89000001-89999999 - Export model
1998 8-25e Rear Engine Rider model 70060 Serial 89000001-89999999 - Export model
