About This File
IPL from Toro Master Parts Viewer
6 pages 326.69KB
Fits B-Series and C-Series tractors
Drive belt 102741 (1/2" x 96.6") (Gates replacement BladeRunner 6638BR 17/32" x 96.75")
Spindle belt 106125 (1/2" x 89.03")

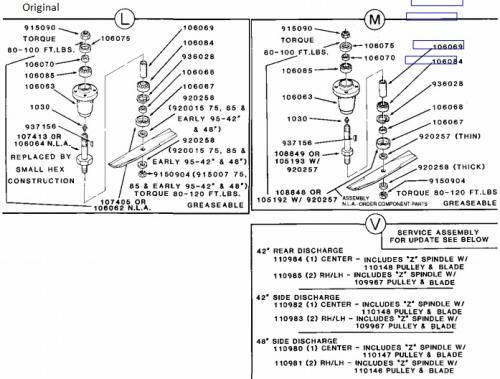

Mower spindle assemblies could be L, M, V or Z
For V see service bulletin 207B
106079 and 106108 blades replaced by 106635 3-blade set (3/4" center hole)
Mower Rotary 1977 42in RD model 75-42MR02
1977 serial numbers that have shown up for the 75-42MR02
013604 - Build date 1977 7026 January 26 Wednesday
026586 - Build date 1977 7172 June 21 Tuesday
026640 - Build date 1977 7173 June 22 Wednesday
