Tractor 1963 33E & 33R Lawn Ranger D&A OM IPL Wiring Rev SN.pdf

Sign in to follow this

admin

7 Screenshots

About This File

Operator manual #135
IPL
Wiring
8 pages 1.07MB
Dated 8/16/62
Includes mower deck model RM-113



Wiring revised pdf

1 page 216KB

#A-7136 IPL
8 pages 1003.19KB

Tractor drive belt for 33E and 33R #9691 - 1/2" x 70"
Mower drive belt 1587 (4Lx43" or 1/2" x 43")



8777 2-blade set replaces 3719, 7760 and 7909 left blades and 3718, 7761 and 7908 right blades



Ignition switch with single terminal for 33E is 3656 replaced by 6890 and nla. See PSB #069

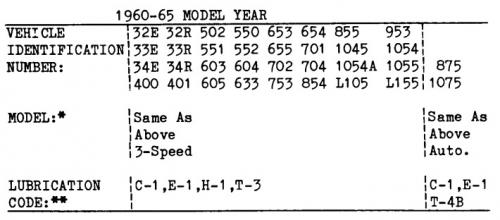

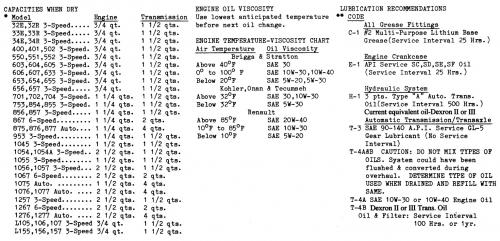

Lube chart SS


Details & Attachments
2 pages 108.41KB

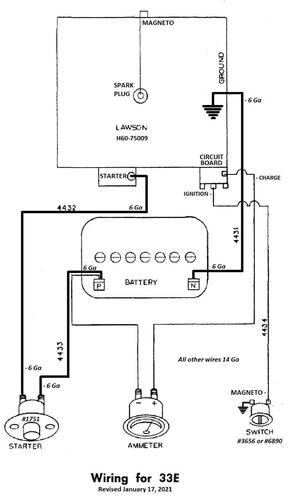

1963 Lawn Ranger model 33E (Electric start)
1963 serial numbers that have shown up for the 33E
62-20610 - May be a 32E
62-25477 - Model and year a guess
62-25718 - Model and year a guess
30624
31101

31395
31420 - May be a 33R
33674 - May be a 33R
37960

Details & Attachments
2 pages 107.24KB

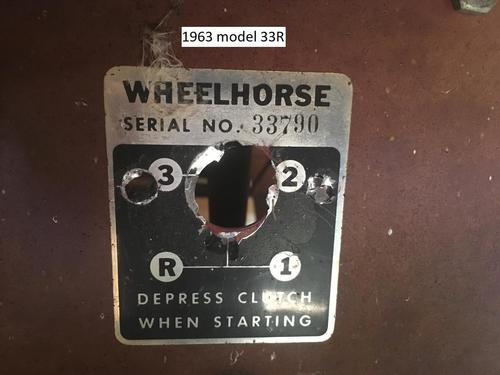

1963 Lawn Ranger model 33R (Recoil start)
1963 serial numbers that have shown up for the 33R
31420 - May be a 33E
33674 - May be a 33E

33790
38410
38482




×
×
