About This File

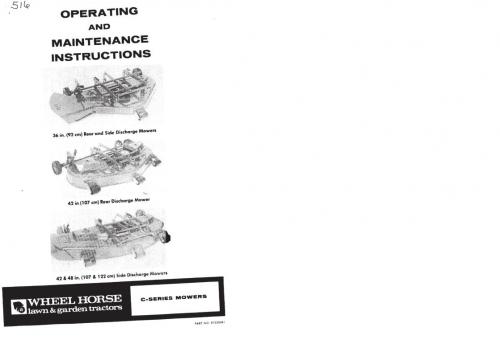

Operator manual #810306R1 or 810306 R1
7 pages 1.29MB
IPL #810172R1 or 810172 R1
7 pages 718.42KB
Fits B-Series, C-Series and 1100 Special tractors
Drive belt 102607 (1/2" x 89.12") when used on medium frame 43-1/2" wheelbase tractors
1972 Commando 800 model 1-0110
1973 8hp 4-Speed model 1-0120
1974 B-80 4-Speed models 1-0140 and 1-0145
1974 B-100 Auto model 1-0510
1975 B-80 4-Speed model 1-0141
1975 B-100 Auto model 1-0511
Drive belt 102741 (1/2" x 96.6") for B-Series & C-Series tractors with 45-1/2" wheelbase (Gates replacement BladeRunner 6638BR 17/32" x 96.75")
Spindle belt 8411 (1/2" x 76.94")

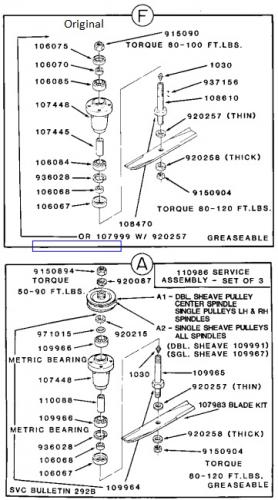

Mower spindle assemblies could be A1, F or Z
For A1 see service bulletin 221B
107982 3-blade set replaces 107435 left and right blades (12-1/8") and 107436 center blade (14-1/8") (Hole 3/4" round)
Mower Rotary 1980 36in RD model 05-36MR01
1980 serial numbers that have shown up for the 05-36MR01
00005411 - Build date 1979 9253 September 10 Monday
00005859 - Build date 1979 9260 September 17 Monday
00013664
00017569
00020590 - Build date 1980 0091 March 31 Monday
00020941
00029024 - Build date 1980 0233 August 20 Wednesday - May be a 1981 model
00029656 - Build date 1980 0233 August 20 Wednesday - May be a 1981 model
Mower Rotary 1981 36in RD model 05-36MR01
1981 serial numbers that have shown up for the 05-36MR01
030511 - Build date 1980 0319 November 14 Friday
030773 - Build date 1981 1057 February 26 Thursday
031587 - Build date 1981 1058 February 27 Friday
033685
033699 - Build date 1981 1001 January 01 Thursday - Looks wrong
03212x - Build date 1981 1082 March 23 Monday (3212)
034014 - Build date 1981 1092 April 02 Thursday
Mower Rotary 1982 36in RD model 05-36MR01
1982 serial numbers that have shown up for the 05-36MR01
37471 - Build date 1981 1292 October 19 Monday - Located in UK
38028 - Build date 1982 2089 March 30 Tuesday
