About This File
Operator manual
IPL
Wiring
12 pages 994.15KB - #245-246
10 pages 1.44MB - #A-5101

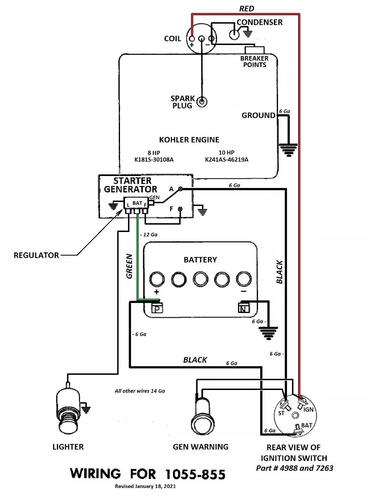

Wiring Color pdf
1 page 303KB
Both models are short frame tractors
Tractor drive belt for 855 and 1055 #9691 - 1/2" x 70"
Transmission driven pulley Woodruff key 937014 replaced by 3257-5 is a Woodruff #9 - 3/16" x 3/4" - Actual key length is .740"
Transmission driven pulley
855 uses part # 1611 for 3/4" input shaft
1055 uses part # 5425 for 3/4" input shaft
Comment by BPjunk - On the old big engined short framed tractors of the mid 60's the transmission drive pulley has the hub with the set screw pointing inwards towards the transmission so the alignment of the pulleys "V" groove is in alignment with the engines drive pulley.
Comment by TT - The 1055 takes P/N 5425 pulley. It's the same pulley that's on a 1045/1056/1057/1257 and does stick out away from the transmission more than the P/N 1611 pulley like the "small block" (like the 656 or 855) tractors use.

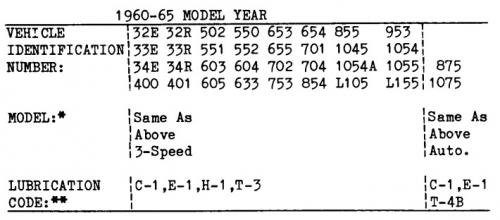

Lube chart SS
8hp Starter/Generator belt
Original Wheel Horse 1583 nla Used on 6, 7, 8hp Kohler Starter generator {3Lx33" in belt charts is 3/8" x 33" Belt should have raw rubber sides for grip.}
3V315 Gates .38"x31.5"
3V315 Napa .38"x31.5"
Kohler #231605 Starter generator belt Replaces 232613 [.41"x32.08" 36 degree] PSB #061 Should use raw rubber edge belt for grip
7315 Gates .41"x32.08" 36 degree
25-7315 Napa .41"x32.08" 36 degree
Small Block Kohler Napa # 25-7320 .41" wide x 32.5" long Side angle 36 degrees Cross section HC41
Details & Attachments
3 pages 117.06KB
1965 model 855
1965 serial numbers that have shown up for the 855
115816
115953
116127
116168
116570
116625
116655
116660
125415
132421
132505
132567
132702
132740
134834
135264
-----------------------------------------------------------------
10hp Starter/Generator belt
Kohler 10hp, 12hp - 235262 (7345 Gates .410" x 35.09" 36 degree) (25-7345 Napa .410" x 35.09" 36 degree)
Wheel Horse 1593 (3L x 34.4") - nla (Gates replacement 6735 3/8" x 35" 38 degree)
1964 model 1045
1964 model 1054 - Not in PSB - Wheel Horse # 1593 nla {3Lx34.4"} - Gates 7340 .410"x34.58" 36 degree or Napa 25-7340 .410"x34.58" 36 degree
1965 model 1054A - Not in PSB - Kohler 235262 replaces 235528 [.41"x35.09" 36 degree] - Gates 7345 .41"x35.09" 36 degree or Napa 25-7345 .41"x35.09" 36 degree
1965 model 1055
1965 model 1075
Big Block Kohler Napa # 25-7345 .41" wide x 35.3" long side angle 37 degrees Cross section HC41
Details & Attachments
3 pages 117.61KB

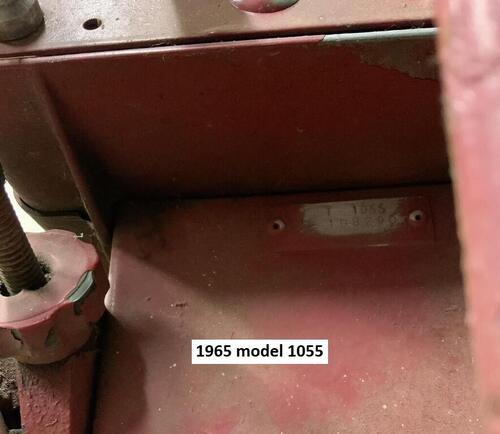

1965 model 1055

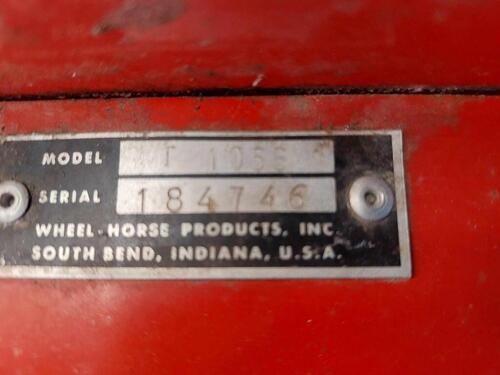

1965 serial numbers that have shown up for the 1055
108071
108290
108348
108359
11608x
117077
117381
136113
184746
