About This File
Operator manual #A-5284

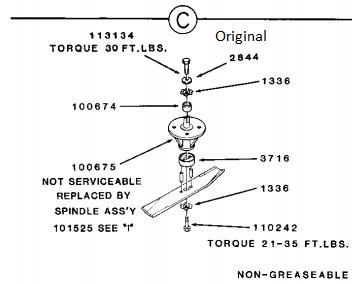

IPL
4 pages 964.47KB
CCW spindle rotation
Fits CG-7 and CG-8 tractors
This application in the 1955-2000 Attachment interchange is wrong
Drive belt 8412 (1/2" x 86")
Spindle belt 8411 (1/2" x 76.94")
8393 center blade and 8394 left and right blades replaced by 9819 3-blade kit and no longer available (Hole 5/8in.x3/4in. Double-D)
Mower Rotary 1971 36in RD model 5-0610
