About This File

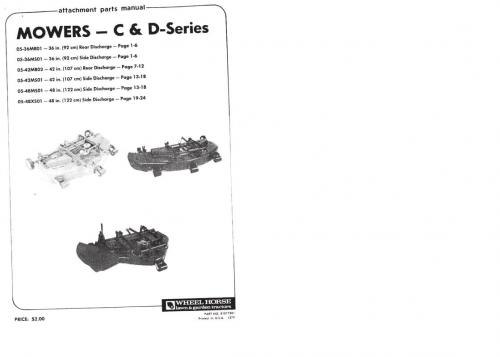

Operator manual #810306R1 or 810306 R1
7 pages 1.29MB
IPL #810172R1
7 pages 718.42KB
Fits B-Series and C-Series tractors
Drive belt 102607 (1/2" x 89.12") when used on medium frame 43-1/2" wheelbase tractors
1972 Commando 800 model 1-0110
1973 8hp 4-Speed model 1-0120
1974 B-80 4-Speed models 1-0140 and 1-0145
1974 B-100 Auto model 1-0510
1975 B-80 4-Speed model 1-0141
1975 B-100 Auto model 1-0511
Drive belt 102741 (1/2" x 96.6") for B-Series & C-Series tractors with 45-1/2" wheelbase (Gates replacement BladeRunner 6638BR 17/32" x 96.75")
Spindle belt 8411 (1/2" x 76.94")

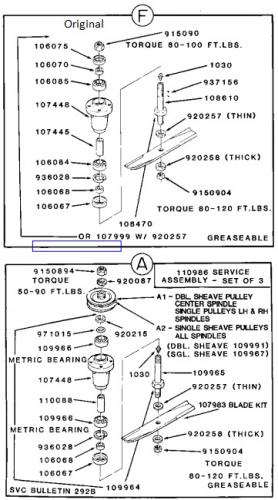

Mower spindle assemblies could be A1, F or Z
For A1 see service bulletin 221B
107983 3-blade set replaces 107437 left and right blades (12-1/8") and 107438 center blade (14-1/8") (Hole 3/4" round)
Mower Rotary 1980 36in SD model 05-36MS01
1980 serial numbers that have shown up for the 05-36MS01
00026670 - Build date 1980 0107 April 16 Wednesday [010/]
Mower Rotary 1981 36in SD model 05-36MS01
Mower Rotary 1982 36in SD model 05-36MS01
