About This File
Operator manual #A-5122
IPL
4 pages 1.13MB
Dated 7/69 Revised 1/22/71
This is a 1972 model @ Toro
Fits 800 models, Raider, Charger, Bronco tractors - long frame 45-1/2" wheel base
Clockwise spindle rotation
Drive belt 9360 (1/2" x 95.63") [1/2" x 97" in ipl looks wrong]
Spindle belt 8411 (1/2" x 76.94")

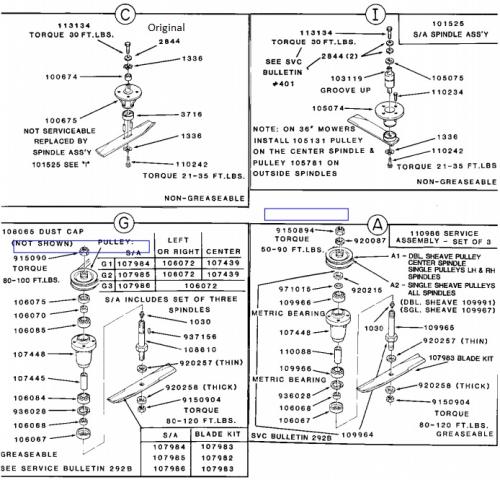

Mower spindle assemblies could be C, A1, G1 or Z
For A1 see service bulletin 292B
For G1 see service bulletin 292B
100776 14-1/8" center blade and 100777 12-1/8" left and right blades replaced by 101335 3-blade kit and no longer available from Toro (Hole 5/8in.x3/4in. Double-D)
2017 Oregon catalog part number 91-802 12-1/8" and Gator blade 96-632 12-1/8" still available.
101335 blade set available again from Toro June 4, 2019
Mower Rotary 1971 36in SD model 5-0711

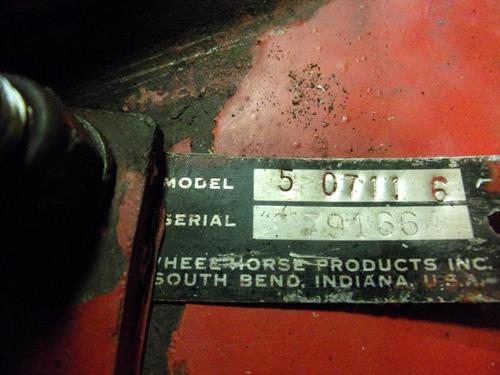

1971 serial numbers that have shown up for the 5-0711
791664 - Model 5-0711-6
813210 - Model 5-0711-6
