About This File

Operator manual #A-5122
IPL
4 pages 1.13MB
Dated 7/69 Revised 1/22/71

CW rotation
Fits 800 models, Raider, Charger, Bronco tractors - long frame 45-1/2" wheel base

(Wrong in the Attachment Interchange for the CG-8 which uses CCW spindle rotation)


Drive belt 9360 (1/2" x 95.63") [1/2" x 97" in ipl looks wrong]
Spindle belt 8411 (1/2" x 76.94")

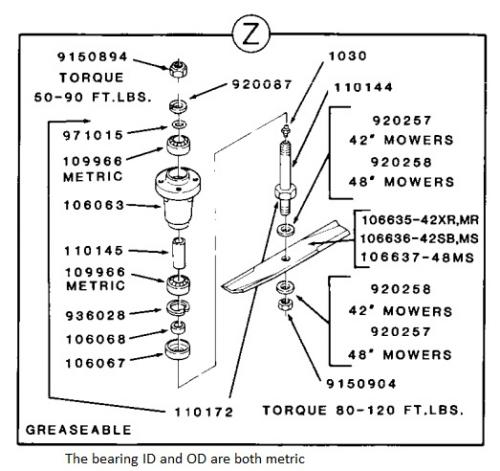

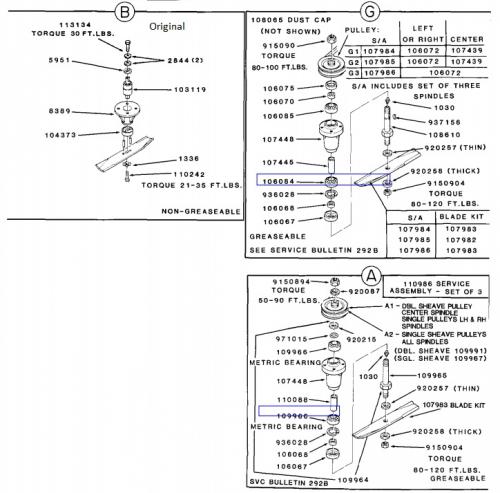

Mower spindle assemblies could be B, A1, G1 or Z

For A1 see service bulletin 292B

For G1 see service bulletin 292B



100776 14-1/8" center blade and 100777 12-1/8" left and right blades replaced by 101335 3-blade kit and no longer available from Toro (Hole 5/8in.x3/4in. Double-D)

2017 Oregon catalog part number 91-802 12-1/8" and Gator blade 96-632 12-1/8" still available.

101335 blade set available again from Toro June 4, 2019

Mower Rotary 1971 36in SD model 5-0710



Mower DNA

1971 model 5-0710 - Idler tension bar mounted with two 2-bolt guides - Deck idler pulley 7434 - Mower replaced by

1971 model 5-0711 - Deck idler pulley 7434

1972 model 5-0720 - Deck idler pulley 7434

1973-1974 model 5-0721 - Deck idler pulley 7434

1975 model 5-0722 - Deck idler pulley 7434

1976 model 65-36MS01 - Deck idler pulley 7434

1977 model 75-36MS01 - Last deck to use idler tension bar mounted with two 2-bolt guides - Deck idler pulley 7434

1977 model 75-36MS02 - First deck to use bushings in center of idler tension bar - Deck idler pulley 7434

1978 model 85-36MS01 - Bushings in center of idler tension bar - Deck idler pulley 7434

1979 model 95-36MS00  - These decks use blades with 5/8" x 3/4" center hole unless the spindle has been upgraded - Deck idler pulley 7434

-----------------------------------------------------------------------------------------------------------------------------------------------------------

1979 model 95-36MS01 - These decks use blades with a 3/4" center hole - Deck idler pulley 7434 - Deck replaced by

1980-1982 model 05-36MS01 - Last year for bearings with 3/4" ID - Deck idler pulley 7434

1983-1984 model 05-36MS02 - First year for bearings with 17mm ID unless older spindles were updated. These decks use blades with a 3/4" center hole - Deck idler pulley 7434



Note - 17mm is .669"

Note - 7434 idler pully has been replaced by 112426 which first shows up for the 1986 rear discharge 36" decks.




×
×
