About This File

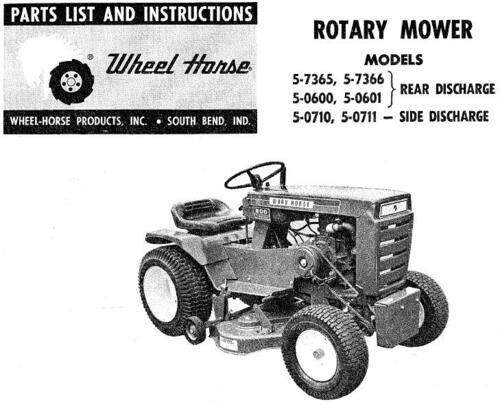

Operator manual #A-5122
IPL
4 pages 539.46KB
Dated 7/69 Revised 11/9/70
CW rotation
Fits 10hp 12hp tractors
Listed in 1974 price list as a 1973 attachment for 1969 long frame tractors but there was a 5-7366 in 1970.
Drive belt 9360 (1/2" x 95.63") [1/2" x 97" in ipl looks wrong]
Spindle belt 8411 (1/2" x 76.94")

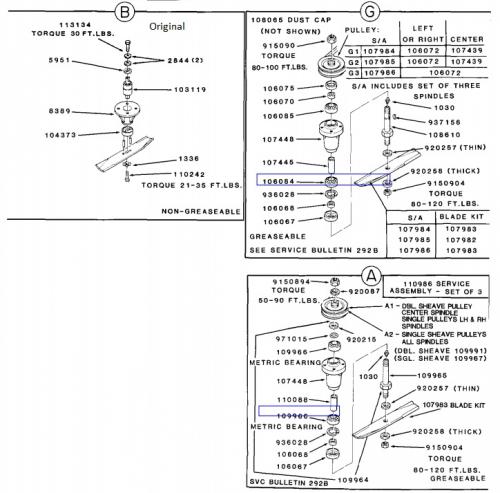

Mower spindle assemblies could be B, A1, G2 or Z
For A1 see service bulletin 292B
For G2 see service bulletin 292B
9187 center blade and 9188 left and right blades replaced by 8969 3-blade kit and no longer available (Hole 5/8in.x3/4in. Double-D)
(101093 3-blade kit in blade chart is not correct)
8969 blade set available again from Toro June 4, 2019 - Still available January 23, 2021
Mower Rotary 1969 36in RD model 5-7365
