161 files
-
Free
Module Cruise List.jpg
By gwest_ca-(File Mod)
Cruise module 95-3029 used in 1998 only on 5xi models
1998 models 73470, 73540, 73541, 73545, 73546, 73550, 73551, 73560
--------------------------------------------------------------------------------------------------------------------

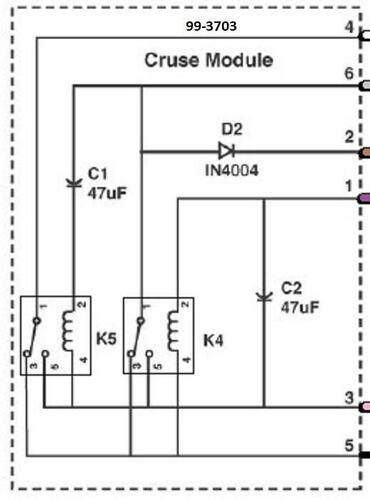

Cruise module 99-3703
Found in manual 492-4761 for 5xi
Used on 5xi models
Internal wiring
1 page
Used on
1999 models 73471, 73542, 73547, 73552, 73561, 73570, 73580, 73590
2000 models 73471 x 2, 73542 x 2, 73547, 73552, 73561 x 2, 73561SEI, 73570, 73580, 73590
2001 models 73471, 73542, 73547, 73561, 73580, 73590
2002 models 73542, 73561, 73570, 73590
2003 models 73542, 73561, 73570, 73590
2004 models 73542, 73561, 73590
2005 model 73561
108 downloads
Updated
-
Free
Switch Cruise control 93-0527 & 94-7602 .jpg
By gwest_ca-(File Mod)
Taken from #492-4761 Electrical Manual

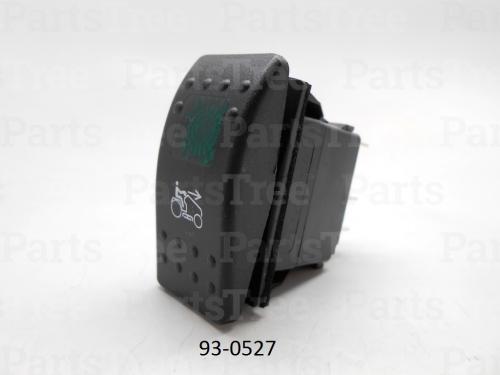

93-0527 cruise control switch
94-7602 cruise control switch
22 downloads
Updated
-
Free
Switch Pto Electric clutch Push-pull 1994-2017 List.jpg
By gwest_ca-(File Mod)
Taken from the #492-4509 Electrical Manual
Electric pto clutch switch description
92-6787 replaced by 93-9998
82-12o502* - Correct
82 -12o502 - Not correct
82-12o502 - Suspicious and not checked or determined yet
92-6787 electric pto clutch switch used on
1994 models 72042*, 72043*, 72062*, 72063*, 72083*, 72103*
1995 models 72042, 72043, 72062, 72063, 72084, 72103
1996 model 72084
93-9998 electric pto clutch switch used on
1995 models 72062, 72063, 72103
1996 models 72042, 72043, 72045, 72046, 72062, 72064, 72085*, 72102, 72104*, 72110
1997 models 72045, 72046, 72064, 72085*, 72102, 72104*, 72110
1998 models 72045 x 2, 72046 x 2, 72064 x 2, 72085 x 2*, 72102 x 2, 72104 x 2*, 72110 x 2
1999 models 72047, 72048, 72070, 72086, 72105, 72106, 72115
2000 models 72049, 72050, 72071, 72087, 72107, 72108, 72116, 74570, 74590
2001 models 72051, 72052, 72072, 72087, 72107, 72108, 72116, 74570, 74590
2002 models 72051, 72052, 72072, 72087, 72107, 72108, 72116, 73450, 74570, 74590
2003 models 72107, 72116, 72200, 72201, 72202, 73450, 74570, 74590
2004 models 72200, 72201, 72202, 72211, 72212, 73450, 74570, 74571, 74590
2005 models 71246, 71286, 71427, 71428, 71429, 72200, 72201, 72202, 72211, 72212, 73450, 74570, 74571, 74590
2006 models 71246, 71286, 72211, 72212, 74570, 74571, 74591
2007 models 71246, 71286, 73450, 74573, 74582, 74592 x 2
2008 models 71252, 71253, 74573, 74582, 74592 x 2
2009 models 71252, 71253, 74573 x 2, 74582, 74592, 74593
2010 models 71252 x 2, 71253, 74560, 74573, 74582, 74593
2011 models 71254, 71255, 74560, 74582, 74593 x 2
2012 models 71254, 71255, 74560, 74585, 74596
2013 models 71254, 71255, 74560, 74585, 74596
2014 models 74560 x 2
2015 model 74560
2016 model 74560
2017 model 74560
39 downloads
Updated
-
Free
Switch Reverse KeyChoice .jpg
By gwest_ca-(File Mod)
Taken from #492-4761 Electrical Manual
Switch Reverse KeyChoice description
46-5780 Reverse KeyChoice switch
Used on
2002 315-8 model 73450
2004 model 71245
31 downloads
Updated
-
Free
Switch Seat 2001 and later .jpg
By gwest_ca-(File Mod)
Taken from #492-4761 Electrical manual
Seat switch used 2001 and later description

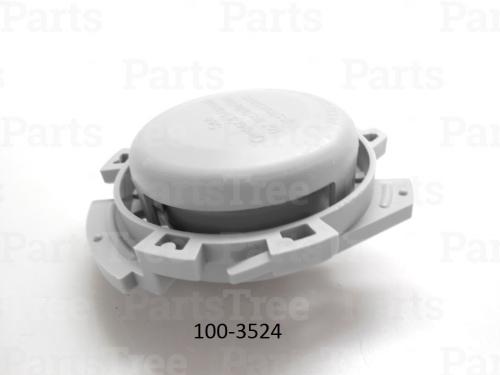

100-3524 seat switch used on the
2002 315-8 model 73450
2004 71245
25 downloads
Updated
-
Free
Switch Neutral Pedal push-button 2002-2003 Description .jpg
By gwest_ca-(File Mod)
Taken from #492-4761 Electrical manual
Pedal push button neutral; switch
106-4145 used on 2003 419XT model 72202
65-7410 replaced by 1-513051
used on
2001 Z17-44 model 74601
2004 model 71245
39 downloads
Updated
-
Free
Switch Neutral Push-button with leads List.jpg
By gwest_ca-(File Mod)
106768 Neutral push-button replaced by 107635 Push button switch with wire leads NO=Normally open - No longer available
Suitable replacement Gardner Bender GSW-22
82-12o502* - Correct
82 -12o502 - Not correct
82-12o502 - Suspicious and not checked or determined yet
106768 Neutral push-button switch used on
1978 models 81 -08K801, 81 -10K801, 81 -12K801, 81-12KS01*, 81 -14K801, 81-14KS01*, 81 -16B801, 81-16BS01*, 81 -16K801, 81-16KS01*
1979 models 91 -08K801, 91 -10K801, 91 -12K801, 91 -14K801, 91 -16B801, 91-16BS01*
107635 Neutral push-button switch used on
1979 models 91 -08K802, 91 -10K802, 91 -11B801, 91 -12K802, 91-12KS01*, 91 -14K802, 91-14KS01*, 91 -16B802, 91-16BS02*, 91 -16K801, 91-16KS01*
1980 models 01 -08K801, 01 -10K801, 01 -12K801, 01-12KE01*, 01-12KS01*, 01 -14K801, 01-14KE01*, 01-14KS01*, 01 -16K801, 01-16KE01*, 01-16KS01*, 01 -17K801, 01-17KE01*, 01-17KS02*
1981 models 01 -08K802, 01 -10K802, 01 -12K802, 01-12KE02*, 01 -14K802, 01-14KE02*, 01 -16K802, 01-16KE02*, 01 -17K802, 01-17KE01*
78 downloads
Updated
-
Free
Switch Pto Safety Push-button 104680 List.jpg
By gwest_ca-(File Mod)
Taken from #492-4207 Electrical Service Manual
104680 Pto Safety push-button switch with 4 terminals to control ignition and starter solenoid. Both pairs of terminals NO=Normally open.
Models using this switch also have a seat switch.
Photo of 105303 plastic wiring connector supplied by hondagod64
82-12o502*C - Correct and Tractor Series
82 -12o502 - Not correct
82-12o502 - Suspicious and not checked or determined yet
104680 Pto push-button switch used on
1975 models 1-0141, 1-0357, 1-0375, 1-038*1, 1-0391*, 1-0395*, 1-0396, 1-0481*, 1-0491*, 1-0511, 1-0612, 1-0631, 1-0651
1976 models 61-07K801, 61-07K802, 61-08K801, 61-08K802, 61-08K803, 61-08K804, 61-10K801, 61-10K802, 61-10K803, 61-10K804, 61-12K801, 61-12K802, 61-12K803, 61-12K804, 61-12KS01, 61-12KS02, 61-12KS03, 61-12KS04, 61-16K801, 61-16K802, 61-16K803, 61-16K804, 61-16KS01, 61-16KS02, 61-16KS03, 61-16KS04, 61-16OS01, 61-16OS02, 61-20KS01, 61-20KS02
1977 models 71-12KS01, 71-16K801, 71-16KS01, 71-16OS01, 71-20KS01
1978 models 81-08K801*C, 81-10K801*C, 81-12K801*C, 81-12KS01*C, 81-14K801*C, 81-14KS01*C, 81-16B801*C, 81-16BS01*C, 81-16K801*C, 81-16KS01*C, 81 -16OS01*, 81 -20KS01*
1979 models 91-08K801*C, 91-08K802*C, 91-10K801*C, 91-10K802*C, 91-11B801*C, 91-11BS01*, 91-12K801*C, 91-12K802*C, 91-12KS01*C, 91-14K801*C, 91-14K802*C, 91-14KS01*C, 91-16B801*C, 91-16B802*C, 91-16BS01*C, 91-16BS02*C, 91-16K801*C, 91-16KS01*C, 91 -16OS01, 91 -20KS01, 91 -20KS02
1980 models 01-08K801*C, 01-10K801*C, 01-11B803, 01-12K801*C, 01-12KE01*C, 01-12KS01*C, 01-14K801*C, 01-14KE01*C, 01-14KS01*C, 01-16K801*C, 01-16KE01*C, 01-16KS01*C, 01 -16OS01, 01-17K801*C, 01-17KE01*C, 01-17KS02*C, 01 -20KS00, 02-08BP01*B, 02-11BP02*B, 02-11BX01*B, 02-16BP01*B
1981 models 01-08K802*C, 01-10K802*C, 01-11B804, 01-12K802*C, 01-12KE02*C, 01-14K802*C, 01-14KE02*C, 01-16K802*C, 01-16KE02*C, 01-17K802*C, 01-17KE01*C, 01 -20KS00, 02-08BP02*B, 02-08BP03*B, 02-11BP03*B
1982 models 01-11BH01, 01-16KH01*, 02-11BH01
132 downloads
Updated
-
Free
Regulator Rectifier Onan 15 amp List.pdf
By gwest_ca-(File Mod)
82-12o502* - Correct
82 -12o502 - Not correct
82-12o502 - Suspicious and not checked or determined yet
Onan voltage regulator 201272 (Amperage unknown)
201272 used on
1976 models 61-16OS01*, 61-16OS02*, 61 -20KS01, 61 -20KS02
101450 15 amp large voltage regulator used on
1977 model 71-16OS01* (PSB301e lists the 101450 15 amp regulator being used)
1978 model 81-16OS01* (PSB301e lists the 101450 15 amp regulator being used)
15 amp Onan voltage regulator 201344
201344 used on
1979 models 91-16OS01*, 91 -20KS02
1980 models 01-16OS01*, 01 -20KS00
1981 model 01 -20KS00
32 downloads
Updated
-
Free
Regulator Rectifier Tecumseh 20 amp 104816 List.jpg
By gwest_ca-(File Mod)
Regulator Rectifier Tecumseh 20 amp large 3-wire
82-12o502* - Correct
82 -12o502 - Not correct
82-12o502 - Suspicious and not checked or determined yet
104816 Regulator Rectifier used on
1975 model 1-0375*
80 downloads
Updated
-
Free
Switch Engine temperature Onan NN10274 .jpg
By gwest_ca-(File Mod)
Taken from #492-4509 Electrical Manual
82-12o502* - Correct
82 -12o502 - Not correct
82-12o502 - Suspicious and not checked or determined yet
NN10274 Onan engine temperature switch
Used on
1988 models 31-16OE01, 31-18OE01, 31-20OE01, C1-20OE01, E1-18OE01, Z1-24OE01
1989 models 31-18OE02, 31-20OE02, C1-20OE02, E1-18OE02, Z1-24OE02
1990 models 41-20O801, 41-20OE01, R1-18OE01, R1-18OE02, Z1-24OE03
1991 models 41-20OE02, Z1-24OE04
1992 models 41-20OE03, R1-20OE02, Z1-24OE05
1993 models 73501, 73520, 74140
1994 models 73501, 73520, 74140
1995 models 73501 x 4, 73520 x 2, 74140
1996 models 73422, 73423, 73441, 73501, 73502, 73521
1997 models 73422, 73423, 73441, 73502, 73521
56 downloads
Updated
-
Free
Switch Micro brake 88-9930.jpg
By gwest_ca-(File Mod)
82-12o502* - Correct
82 -12o502 - Not correct
82-12o502 - Suspicious and not checked or determined yet
88-9930 Micro Lever Switch used on
1993 models 70040, 70042, 70060, 70080, 70120, 70140
1994 models 70040, 70060, 70080, 70100, 70120, 70141, 72042, 72043, 72062, 72063, 72083, 72103
1995 models 70040, 70060, 70080, 70120, 70141, 70142, 72042 x 2, 72043 x 2, 72062 x 2, 72063 x 2, 72084, 72103 x 2
1996 models 70040, 70060, 70080, 70081, 70120, 70131, 70142, 70183, 72042, 72043, 72045, 72046, 72062, 72064, 72084, 72085*, 72102, 72104*, 72110
1997 models 70040 x 2, 70060, 70081, 70131, 70142, 70183, 72045, 72046, 72064, 72085*, 72102, 72104*, 72110
1998 models 70040, 70041, 70060, 70082, 70084, 72045 x 2, 72046 x 2, 72064 x 2, 72085* x 2, 72102 x 2, 72104* x 2, 72110 x 2
1999 models 70044, 70089, 70122, 70171, 72047
2000 models 70044 x 2, 70089 x 2, 70122, 70171, 72049, 72050, 72071, 72087, 72107, 72108, 72116,
2001 models 70044, 70089, 70122,70171
2002 models 70044, 70089
32 downloads
Updated
-
Free
Switch Micro Pto Lever 88-9932 List.jpg
By gwest_ca-(File Mod)
82-12o502* - Correct
82 -12o502 - Not correct
82-12o502 - Suspicious and not checked or determined yet

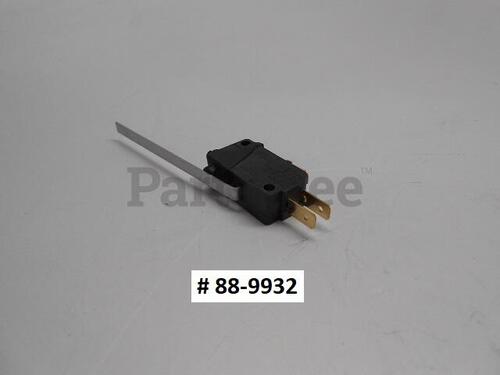

88-9932 Micro Lever Switch used on
1995 models 71182, 71184 x 2, 71191 x 2, 71192, 71200 x 2, 71202, 71205, 71213 x 2, 71216
1996 models 70131, 70142, 71182, 71184, 71185, 71188, 71191, 71192, 71193, 71196, 71201, 71205, 71217, 71218, 72045, 72046, 72064, 72085, 72102, 72104, 72110
1997 models 70131, 70142, 71185, 71188, 71189, 71190, 71193, 71196, 71201, 71205, 71208, 71215, 71217, 71218, 71219, 72045, 72046, 72064, 72085, 72102, 72104, 72110
1998 models 70041, 70060, 70084, 71185, 71188, 71189, 71190, 71196, 71201, 71208, 71215, 71218, 71219, 72045 x 2, 72046 x 2, 72064 x 2, 72085 x 2, 72102 x 2, 72104 x 2, 72110 x 2
1999 models 70044, 70122, 70171, 71197, 71198, 71199, 71209, 71220, 71221, 71240, 71280, 72047, 72048, 72070, 72086, 72105, 72106, 72115
2000 models 70044 x 2, 70122, 70171, 71197, 71199, 71209, 71212, 71223, 71225, 71226, 71241, 71280, 71300, 72049, 77102, 77104, 77106
2001 models 70044, 70122, 70171, 71199, 71209, 71223, 71226, 71227, 71228, 71233, 71242, 71282, 71301
2002 models 70044, 71199, 71209, 71223 x 2, 71226, 71227 x 2, 71228 x 2, 71233, 71242 x 2, 71283
2003 models 71199, 71209, 71223, 71227, 71228, 71233, 71242, 71245, 71283
2004 models 71199, 71209, 71223, 71227, 71228, 71242, 71243, 71245, 71283, 71285
2005 models 71199, 71209 x 2
2006 model 71209
2007 model 71209
2008 model 71209
2009 model 71257
2010 model 71257
17 downloads
Updated
-
Free
Clutch Electric pto 94-2190 List.pdf
By gwest_ca-(File Mod)

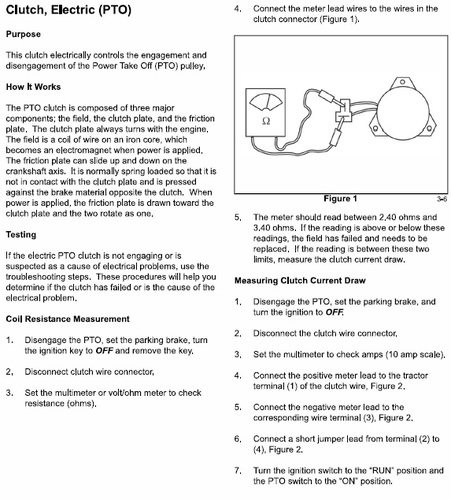

Taken from Demystification Guide #492-9137
2 pages 692KB
Coil resistance should be 2.40 to 3.40 ohms.
Current draw should be 3.5 amps or above.
94-2190 electric pto used on
1998 models 73470, 73540, 73541, 73545, 73546, 73550, 73551, 73560
1999 models 73471, 73542, 73547, 73552, 73561, 73570, 73580, 73590
2000 models 73471 x 2, 73542 x 2, 73547 x 2, 73552, 73561 x 3, 73561SEI, 73570, 73580, 73590
2001 models 73471, 73542, 73547, 73561, 73580, 73590
2002 models 73542, 73561, 73570, 73590
2003 models 73542, 73561, 73570, 73590
2004 models 73542, 73561, 73590
2005 model 73561
80 downloads
Updated
-
Free
Switch Pto Electric clutch Toggle 112929 List.jpg
By gwest_ca-(File Mod)
112929 switch for electric pto and starter safety switch
82-12o502* - Correct
82 -12o502 - Not correct
82-12o502 - Suspicious and not checked or determined yet
112929 used on
1988 models 32-08B402, 32-11B402, 32-11BX02, 32-12K602
1989 models 32-11B403, 32-12B501, 32-12BE01, 42-08B401, 42-11B501
39 downloads
Updated
-
Free
Switch Pto Electric clutch Toggle 113178 Wiring List.jpg
By gwest_ca-(File Mod)
113178 6-terminal switch for electric pto and starter safety switch
82-12o502* - Correct
82 -12o502 - Not correct
82-12o502 - Suspicious and not checked or determined yet
113178 used on
1988 models 22-13KE01*, 22-17KE01*, 32 -08B402, 32 -11B402, 32 -11BX02, 32-12K602*, E2-09K401, 2-12K501, F2-12K501
1989 models 22-13KE02*, 22-17KE02*, E2-12K502, E2-12KE01, R2-12K501, R2-12KE01, S2-12K501
1991 models A2-12K501, A2-12KE02
34 downloads
Updated
-
Free
Module Dash light List.jpg
By gwest_ca-(File Mod)
Taken from #492-4509 Electrical Manual
110999 panel introduced in 1986 through 1988 for 312, 414 and 416 models - Replaced by 115207
111000 panel introduced in 1986 through 1988 for 417 and 420 models - Replaced by 115207
115207 panel introduced in 1989 through 1990 - (Page 3-12 of the Demystification Guide does not apply to the idiot light module. Should be page 3-13)
114825 idiot light module used 1990-1997 and replaced by 115207 - (Page 3-12 of the Demystification Guide does not apply to the idiot light module. Should be page 3-13)
79-2130 idiot light module used 1991-1997 on the 520 models - (Page 3-12 of the Demystification Guide does not apply to the idiot light module and page 3-13 is a different module. 79-2130 should not be listed.)
82-12o502* - Correct
82 -12o502 - Not correct
82-12o502 - Suspicious and not checked or determined yet
110999 Light circuit board used on
1986 models 21-12K802*, 21-12K803*, 21-12KE01*, 21-12KE02*, 22-11B502*, 22-12TE01, 31-14K801*, 31-16K802*
1987 models 21-12K804, 21-12KE03, 31-14K802, 31-16K803, 32-11B301, 32-11B501, 41 -18KE01, B2-11B392
1988 models 21-12K805*, 31-14K803*, 31-16K804*, E1-12K801*
111000 Light circuit board used on
1986 models 31-17K802*, 31-17KE02*, 31-20KE01*
1987 models 21-12K804, 21-12KE03, 31-14K802, 31-16K803, 31-18K801*, 31-18KE01*, 41 -18KE01
1988 model B1-16O801*
115207 Light circuit board used on
1988 models 22-17KE01*, Not used on 22 -13KE01
1989 models 22-17KE02*, Not used on 22 -13KE02
114825 Light circuit board used on
79-2130 Light circuit board used on
140 downloads
Updated
-
Free
Switch Test Toggle 111353 List.jpg
By gwest_ca-(File Mod)
Taken from 1986 300-Series 400-Series IPL SW Wiring
82-12o502* - Correct
82 -12o502 - Not correct
82-12o502 - Suspicious and not checked or determined yet
111353 indicator lamp test switch used on
1986 models 21 -08K801, 21 -08K802, 21 -10K802, 21 -10K803, 21-12K802, 21-12K803, 21-12KE01, 21-12KE02, 31-14K801, 31-16K802, 31-17K802, 31-17KE02, 31-20KE01
1987 models 21 -08K803, 21 -10K804, 21-12K804, 21-12KE03, 31-14K802, 31-16K803, 31-18K801, 31-18KE01, 41-18KE01
1988 models 21 -08K804, 21 -10K805, 21-12K805, 22 -13KE01, 22-17KE01*, 31-14K803, 31-16K804, B1-16O801, E1-12K801, E2-13K501, E2-17K501, F2-09K401
1989 models 21 -10K806, 21-12K806, 22 -13KE02, 22-17KE02*, 31-14K804, 31-16O801, B1-16O802, E1-12K802, E2-17K502
1990 models R1-12K801, R1-16O801, R2-17K501
64 downloads
Updated
-
Free
Light Oil level indicator 111345 & 117185 List.jpg
By gwest_ca-(File Mod)
82-12o502* - Correct
82 -12o502 - Not correct
82-12o502 - Suspicious and not checked or determined yet
111345 Light Low oil used on
1986 models 21-10K802*, 21-10K803*
1987 model 21-10K804*, 41-18KE01*
1988 model 21-10K805*
1989 model 21-10K806*
117185 Light Low oil used on
1990 model 31-10K801*, R1 -12K802, R1 -16O802
1991 model 31-10K802*
1992 model 31-10K803*
75 downloads
Updated
-
Free
Sensor Hydro oil temperature 113193 List .jpg
By gwest_ca-(File Mod)
Taken from #492-4509 Electrical Manual
113193 hydro oil temperature sensor
Normal oil temperature is 180 degrees F.
Usage list - 10 pages 28KB pdf
82-12o502* - Correct
82 -12o502 - Not correct
82-12o502 - Suspicious and not checked or determined yet
113193 switch used on
1988 models 31-16OE01, 31-18OE01, 31-20OE01, C1-20OE01, E1-18OE01
1989 models 31-18OE02, 31-20OE02, C1-20OE02, E1-18OE02, R1-18OE01
1990 models 41-20O801, 41-20OE01, R1-18OE02
1991 models 41-20OE02, R1-20OE01
1992 models 41-20OE03, R1-20OE02
1993 models 73501, 73520
1994 models 73501, 73520
1995 models 73501 x 4, 73520 x 2
1996 models 73501, 73502, 73521
1997 models 73502, 73521
35 downloads
Updated
-
Free
Module Safety Interlock 104107 List.jpg
By gwest_ca-(File Mod)
Interlock module 104107
Usage list - 5 pages pdf
82-12o502*C - Correct and Tractor Series
82 -12o502 - Not correct
82-12o502 - Suspicious and not checked or determined yet
104107 Safety interlock module used on
1974 models 1-0280*A, 1 -0285
1975 models 1-0281*A, 1-0282*A, 1 -0286, 1 -0287
1976 models 61-07K801*, 61-07K801*, 61 -08K801, 61 -08K802, 61 -08K803, 61 -08K804, 61 -10K801, 61 -10K802, 61 -10K803, 61 -1K804, 61 -10K801, 61 -12K802, 61 -12K803, 61 -12K804, 61 -16K801, 61 -16K802, 61 -16K803, 61 -16K804
1977 models 71-07K801*, 71 -08K801, 71 -10K801, 71 -12K801, 71 -16K802
17 downloads
Updated
-
Free
Switch Ignition Magneto Keyed 29-5560.jpg
By gwest_ca-(File Mod)
Keyed magneto ignition switch for recoil start
23-0650 replaced by 29-5560
25-6420 replaced by 29-5560
28-6270 replaced by 29-5560
29 downloads
Updated
-
Free
Module Interlock 95-0659 .jpg
By gwest_ca-(File Mod)
Taken from #492-4509 Electrical Manual
28-7890 interlock module replaced by 95-0659
67-1190 interlock module replaced by 95-0659
53 downloads
Updated
-
Free
Switch Ball safety 105877 List.jpg
By gwest_ca-(File Mod)
Clutch pedal and neutral switch taken from #492-4207 Electrical Service Manual
Also used as a pto switch on some models
Plastic 2-wire slide-on connector 106024 less terminals used 1977-1980 - nla
Plastic 2-wire slide-on connector 106771 less terminals used 1980-1983 - still available from Toro
9/16-18 threads on 102277 mounting nut
82-12o502* - Correct
82 -12o502 - Not correct
82-12o502 - Suspicious and not checked or determined yet
105877 replaced by 38-0430 after tractor production. Ball switch NO=Normally open - Nail head terminals for a slide on Packard connector. Some illustrations show a switch with flat spade terminals.
38-0430 also replaces 40-7410, 40-7440 and 517281 - No record of where these were used.
105877 ball switch used on
1976 models 61 -07K802, ,61 -08K803 61 -10K803, 61 -12K803, 61-12KS03(1)*, 61 -16K803, 61-16KS03(1)*
1977 models 71-07K801(2)*, 71-08K801(2)*, 71-10K801(2)*, 71-12K801(2)*, 71-12KS01(1)*, 71-12KS02, 71-16K801(1), 71-16K802(2)*, 71-16KS01(1)*, 71-16KS02(2)*
1978 models 81 -08K801, 81-10K801, 81-12K801, 81-12KS01, 81-14K801, 81-14KS01, 81-16B801, 81-16BS01, 81-16K801, 81-16KS01
1979 models 91-08K801*, 91-08K802*, 91-10K801, 91-10K802*, 91-11B801*, 91-12K801, 91-12K802*, 91 -12KS01, 91-14K801, 91-14K802*, 91 -14KS01, 91-16B801, 91-16B802*, 91 -16BS01, 91 -16BS02, 91-16K801*, 91 -16KS01, 93-05BP01, 93-05BP02, 93-08BP01, 93-08BP02, 93-08XP02, 93-11BP01
1980 models 01-08K801, 01-10K801, 01-11B803, 01-12K801, 01-12KE01, 01-12KS01, 01-14E801, 01-14K801, 01-14KE01, 01-14KS01, 01-16K801, 01-16KE01, 01-16KS01, 01-17K801, 01-17KE01, 01-17KS02, 02-08BP01, 02-11BP02, 02-11BX01, 02-16BP01, 03-05BP01, 03-08BP01, 03-08EP01*E, 03-08XP01, 03-11BP01
1981 models 01-08K802, 01-10K802, 01-11B804, 01-12K802, 01-12KE02, 01-14E801, 01-14K802, 01-14KE02, 01-16K802, 01-16KE02, 01-17K802, 01-17KE01, 02-08BP02, 02-08BP03, 02-11BP03, 02-11BP04, 02-11BX02, 02-11BX03, 02-16BP02, 02-16BP03, 03-05BP02, 03-08BP02, 03-08EP01*E, 03-11BP02
1982 models 01-11BH01* for seat switch and clutch, 01-14E801, 01-16KH01* for clutch, 02-11BH01* for clutch, 03-08EP01*E, 23-05BP01, 23-08BP01, 23-11BP01, 23-11BX01, A3-053201, A3-083201
1983 models 01-14E801, 03-08EP01*E
1985 models 33-08B301, 33-08B501, 33-08X301, 33-11B501
57 downloads
Updated
-
Free
Regulator Rectifier Kohler 15 amp small 2-wire 109313.jpg
By gwest_ca-(File Mod)
15 amp 2-wire voltage regulator 109313
Smaller unit with 2-wire leads - 15 amp - One AC lead from stator jumpered to the DC+ terminal
109313 used 1982-1984
1982 models 01-08K803, 01-10K803, 01-12K803, 01-14KE03, 01-17K803, 01-17KE02
1983 models 01-14KE04, 01-17KE03, 11-08K801, 11-10K801, 11-12K801, 11-17K801
1984 models 11-10K802, 11-12K802, 11-14KE01, 11-16K801, 11-17KE01
44 downloads
Updated
