Manual

Manual transmissions

102 files

  1. Free

    Transmission Gear Uni-drive 8-speed 1.125in axle 10-pinion LS 5073 1970-1973 IPL.pdf

    By gwest_ca-(File Mod)

    Model 5073
    IPL
    2 pages 522.62KB

    1-1/8" axles Uses 7202 replaced by 121384 12" right axle and 7203 11-1/4" left axle and 937022 Woodruff #15 keys - 1/4" x 1") [937002 replaced by 937022 - May be a typo]
    Axle 101511 also shows as being replaced by 121384
    10-pinion limited slip differential eight-speed
    8-speeds have the brake drum mounted on the cluster gear shaft. Use Section V of the service manual.
    Has a dipstick

    For low resolution transmission service manual see
    For high resolution transmission service manual see
    5073 used in
    1970 Raider 10 model 1-6051
    1970 Raider 12 model 1-6251
    1970 Raider 12 model 1-6252
    1970 Raider 12 model 1-6253
    1971 Raider 10 model 1-0300
    1971 Raider 12 model 1-0310
    1972 Raider 12 model 1-0311
    1972 Raider 14 model 1-0320
    1973 14hp 8-speed model 1-0340
    1973 12hp 8-speed model 1-0350
    1973 Raider 12 8-speed model 1-0350 - Export model

    196 downloads

    Updated

  2. Free

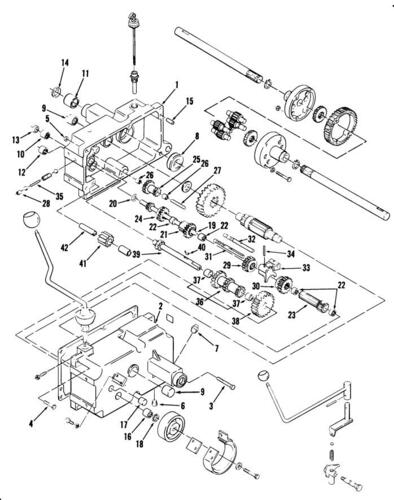

    Transmission Gear Uni-drive 8-speed 1.000in axle 4-pinion 110996 1985-1993 IPL.pdf

    By gwest_ca-(File Mod)

    1986 Model 110996
    IPL
    4 pages 2MB

    1991 Model 110996
    IPL
    4 pages 189.82KB

    1" axles - 2 of 5961 11-5/8" long
    4 one-piece pinion differential eight-speed
    8-speeds have the brake drum mounted on the cluster gear shaft. Use Section V of the service manual.
    The 310-8 in this parts list uses the 110996 with 1" axles except for the few listed near the bottom of the page in 1990.

    110996 used 1985-1993 has 1" axles
    1985 310-8 model 21-10K801 - * Uses 1533 differential carrier bearings * (1-1/2x2-1/2x1/2in.)
    1985 312-8 model 21-12K801 - * Uses 1533 differential carrier bearings * (1-1/2x2-1/2x1/2in.)
    1985 314-8 model 21-14K801 - * Uses 1533 differential carrier bearings * (1-1/2x2-1/2x1/2in.)
    The 1985 sales brochure shows the 416-8 and 417-8 having 8 pinion gears. The ipl available does not include the gear transmissions.

    1986 308-8 model 21-08K801 - * Uses 111199 differential carrier bearings * (SKF 6008-C3 40x68x15mm)
    1986 308-8 model 21-08K802 - * Uses 1533 differential carrier bearings * (1-1/2x2-1/2x1/2in.)
    1986 310-8 model 21-10K802 - * Uses 111199 differential carrier bearings * (SKF 6008-C3 40x68x15mm)
    1986 310-8 model 21-10K803 - * Uses 1533 differential carrier bearings * (1-1/2x2-1/2x1/2in.)
    1986 312-8 model 21-12K802 - * Uses 111199 differential carrier bearings * (SKF 6008-C3 40x68x15mm)
    1986 312-8 model 21-12K803 - * Uses 1533 differential carrier bearings * (1-1/2x2-1/2x1/2in.)
    1986 512-D model B1-12R801 - * Uses 111199 differential carrier bearings * (SKF 6008-C3 40x68x15mm)
    1986 512-D model C1-12R801 - * Uses 111199 differential carrier bearings * (SKF 6008-C3 40x68x15mm)

    1987 308-8 model 21-08K803 - * Uses 111199 differential carrier bearings * (SKF 6008-C3 40x68x15mm)
    1987 310-8 model 21-10K804 - * Uses 111199 differential carrier bearings * (SKF 6008-C3 40x68x15mm)
    1987 312-8 model 21-12K804 - * Uses 111199 differential carrier bearings * (SKF 6008-C3 40x68x15mm)
    1987 512-D model B1-12R802 - * Uses 111199 differential carrier bearings * (SKF 6008-C3 40x68x15mm) - This one is a guess

    1988 308-8 model 21-08K804
    1988 310-8 model 21-10K805
    1988 312-8 model 21-12K805
    1988 312-8e model E1-12K801
    1988 316-8e model B1-16O801

    1989 310-8 model 21-10K806
    1989 312-8 model 21-12K806
    1989 312-8e model E1-12K802
    1989 316-8e model B1-16O802

    1990 310-8 model 31-10K801
    1990 310-8 model 31-10K801 serial numbers 11752, 11753, 11754 and 11755 use 1-1/8" axles and 4 pinion gears
    1990 312-8 model 31-12K801 listed at Toro. Wrong and should be 110995 with 1-1/8" axles and 8 pinions
    1990 312-8e model R1-12K801

    1991 310-8 model 31-10K802 Serial 1900001-1999999

    1992 310-8 model 31-10K803 Serial 2900001-2999999

    1993 310-8 model 73320 Serial 3900001-3999999

    For low resolution transmission service manual see
    For high resolution transmission service manual see


    422 downloads

    Updated

  3. Free

    Transmission Gear Uni-drive 8-speed 1.000in axle 4-pinion 5086 1972-73 & 1980-84 IPL.pdf

    By gwest_ca-(File Mod)

    Model 5086
    IPL
    1" axles - 2 of 5961 11-5/8" long
    4 one-piece pinion differential eight-speed
    The 8hp and 10hp models in this parts list used the 5086 transmission.
    8-speeds have the brake drum mounted on the cluster gear shaft. Use Section V of the service manual.

    For low resolution transmission service manual see
    For high resolution transmission service manual see
    Used in
    1972 Raider 8 model 1-0330
    1972 Raider 10 model 1-0301
    1973 8hp 8-speed model 1-0370
    1973 10hp 8-speed model 1-0365
    1973 Raider 10 8-speed model 1-0360
    (1979 C-161 8-speed model 91-16K801 Listed @ Toro but not correct - Uses model 103916)
    (1979 C-161 Twin 8-speed model 91-16B801 Listed @ Toro but not correct - Uses model 103916)
    (1979 C-161 Twin 8-speed model 91-16B802 Listed @ Toro but not correct - Uses model 103916)
    1980 1100 Special model 01-11B803
    1981 GT-2500 8-speed model 01-11B804
    1982 GT-1142 8-speed model A1-114201
    1982 GT-1642 Twin 8-speed model A1-164201
    1982 SB-421 8-speed model 01-11BH01
    1982 SK-486 8-speed model 01-16KH01
    1983 GT-1142 8-speed model A1-114202
    1983 GT-1642 Twin 8-speed model A1-164202
    1984 GT-1100 8-speed model A1-11B801 - Some used alternate inner axle bearing See PSB #369
    1984 GT-1600 Twin 8-speed model A1-16B801 - Some used alternate inner axle bearing See PSB #369

    180 downloads

    Updated

  4. Free

    Transmission Gear Peerless 820-024 IPL SM.pdf

    By gwest_ca-(File Mod)

    IPL
    14 pages 182.67KB

    Service manual
    7 pages 266KB

    Uses 792138 shift keys in 820-024 transmission
    Uses 792180 shift keys in 820-024a transmission

    1994 264-6 model 72042 Serial 4900001-4999999
    1994 264-6 model 72062 Serial 4900001-4999999 - Export model 264-6e

    1995 264-6 model 72042 Serial 5900001-5900796
    1995 264-6 model 72042 Serial 5900797-5999999
    1995 264-6 model 72062 Serial 5900001-5900227 - Export model 264-6e
    1995 264-6 model 72062 Serial 5900228-5999999 - Export model 264-6e

    1996 264-6 model 72042 Serial 6900001-6999999
    1996 264-6 model 72062 Serial 6900001-6999999 - Export model 264-6e
    1996 265-6 model 72045 Serial 6900001-6999999 - Export model 265-6e

    1997 265-6 model 72045 Serial 7900001-7999999 - Export model 265-6e

    1998 265-6 model 72045 Serial 8900001-8900399 - Export model 265-6e
    1998 265-6 model 72045 Serial 8900400-8999999 - Export model 265-6e

    1999 265-6 model 72047 Serial 9900001-9999999

    2000 265-6 model 72049 Serial 200000001-200999999

    158 downloads

    Updated

  5. Free

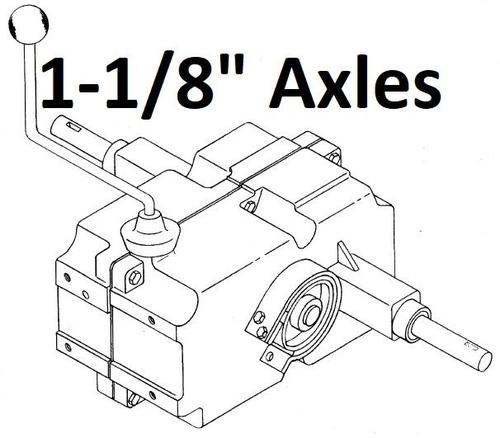

    Transmission Gear Uni-drive 6-speed 1.125in axle 10-pinion LS 5060 1967-1968 IPL.pdf

    By gwest_ca-(File Mod)

    Model 5060
    Illustrated parts list
    2 pages 2.51MB
    1-1/8`` axles Uses 7202 replaced by 121384 12" right axle and 7203 11-1/4" left axle and 937022 Woodruff #15 keys - 1/4" x 1") [937002 replaced by 937022 - May be a typo]
    Axle 101511 also shows as being replaced by 121384
    10 pinion limited slip differential six-speed

    5060 has an extension on the filler plug - no dipstick
    6-speeds have the brake drum mounted on the 11/44 (mushroom) gear. Use Section III of the service manual.
    Aluminum side plates on the 5060 differential...steel side plates on the 5071

    For low resolution transmission service manual see
    For high resolution transmission service manual see
    5060 used in
    1967 867
    1967 1067
    1967 1267
    1968 Raider 9 model 1-6931
    1968 Raider 12 model 1-6231

    182 downloads

    Updated

  6. Free

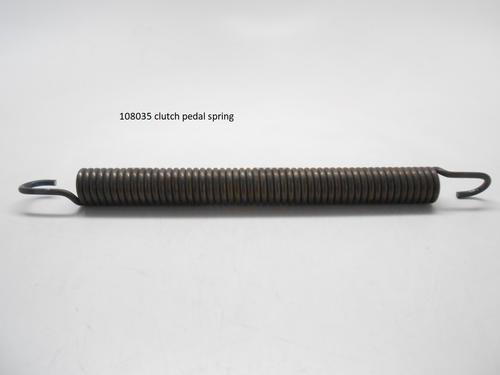

    Transmission Gear Uni-Drive Clutch Spring Extension 108035.jpg

    By gwest_ca-(File Mod)

    The 1984 8-speed clutch pedal spring was 108035 and still available from Toro 05-06-18

    Replaces spring #1014

    55 downloads

    Updated

  7. Free

    Differential Peerless 172 & 172A IPL.pdf

    By admin-(Admin)

    IPL
    172 4 pages 100.86KB
    172A 4 pages 101.17KB

    Wheel Horse part number 225285

    1976 A-60 26" 4-Speed Rear Engine Rider model 63-05BF01

    95 downloads

    Updated

  8. Free

    Transmission Gear Uni-drive 3-speed 1.000in axle 4-pinion 5003 & 5010 1958-1961 IPL.pdf

    By gwest_ca-(File Mod)

    Model 5003 & 5010
    IPL
    1" axles 2 of 3532 10-5/8" long with no splines for gear (Uses Woodruff keys)
    4 two-piece pinion differential three-speed
    3 pages 340.23KB

    3-speeds have the brake drum mounted on the 11/44 (mushroom) gear. Use Section I of the service manual.

    For low resolution transmission service manual see
    For high resolution transmission service manual see


    Model 5003 and 5010 transmissions used 1958-1961
    1958 model RJ-58
    1959 model RJ-59
    1960 model 400
    1960 model 500
    1961 model 401

    161 downloads

    Updated

  9. Free

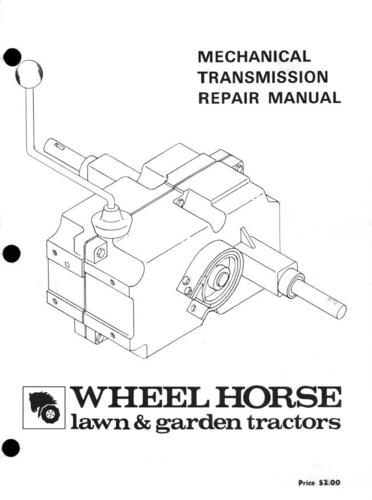

    Transmission Gear Uni-Drive 1958-1982 Form A-1392 Much better quality

    By WheelHorse_of_course

    Replacement for: Transmission Gear Uni-Drive 1958-1982 SM HR #A-1392.pdf

    This is a 600 DPI scan of a very good copy of this manual. From what I can tell the content is identical to the file that includes the following on the rear cover "0482 Revision P/N 492-4004". Front cover changed only with the price going from 2.00 to 3.50. I have gone through it page by page and came to this conclusion. I have never seen an original of the aforementioned version, but I have seen two different scans of it. The words on the photos are very difficult to read on those scans.

    This scan is much improved in quality compared to those. And since the content appears identical (other than front and rear covers) I am uploading it for your pleasure. There are a few pages I had to scan several times to get a really good version

    Additional notes 6/16/2020 - after spending considerable time comparing the two, side by side, I have found a few pages of the 0482 revision that are different than this file. They are as follows:
    1) Page 12. Point number 5 is missing. See service bulletin 23 for the missing info.
    2) Pages 32 and 51. Does not have the "Note" mentioning that service bulletin 252 covers conversion from limited slip to 8-pinion differential.
    3) Page 50. Does not have "Note" referring to service bulletins 174 and 273 discussing differential bolt changes.

    I would advise that all users of this manual should be aware of the information in service bulletins 55, 60, 76, 80, 252, 273, 369, 394a and 425. There are a few other service bulletins on trnasmission, but they seem to be either superseded or the information is covered in this manual.

    I am also very curious if owners of an original copy of the 0482 version can read the captions within photos. It is quite clear that the ortho-film exposures on that version were darker, and I suspect that even on an original, that some photo captions may be hard to read. On the earlier version the text it a bit harder to read because of the shorter exposure, but it is certainly readable, and there's no doubt this version is more useful. It is clear that the book was type set once, and that the changes are a matter of pasting in the comments and re-shooting the negatives. Edits were a LOT more work back then. Enough work in fact, that Wheel Horse increased the price from $2 to $3.50 after they made these changes!

    I am pleased to see folks are downloading this!

    My next project is to find a good original of the Sundstrand manual so I can

    455 downloads

    Updated

  10. Free

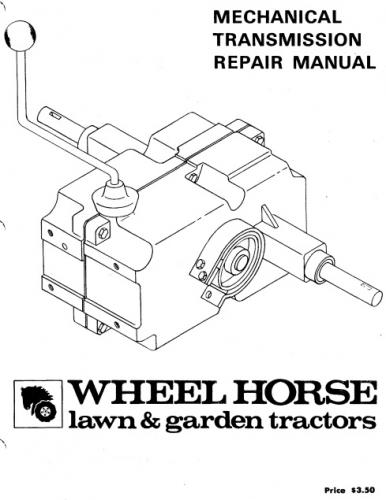

    Transmission Gear Uni-Drive 1958-1982 SM HR #A-1392.pdf

    By admin-(Admin)

    Service manual
    High resolution
    Form No. A-1392
    P/N 492-4004

    Section I
    Models 5003-5010
    16 pages 14.3MB

    Section II
    Models 5053-5058 3-Speed
    18 pages 18.3MB

    Section III
    Model 5060 6-Speed
    16 pages 12MB

    Section IV
    4-Speed
    14 pages 8.3MB

    Section V
    8-Speed
    16 pages 9.5MB

    1" axles used in Uni-Drive transmissions
    3-Speed transmission models - 5003 (1958-1959), 5007 (1961), 5010 (1960-1961), 5025 (1962-1964), 5046 (1964), 5048 (1965), 5049 (1965), and 5053 (1966-1969)
    4-Speed transmission models - 5080 (1971), 5084 (1974-1975) and 5085 (1972-1974)
    8-Speed transmission models - 5086 (1972-1973 and 1980-1984) and 110996 (1985-1993)

    4,217 downloads

    Updated

  11. Free

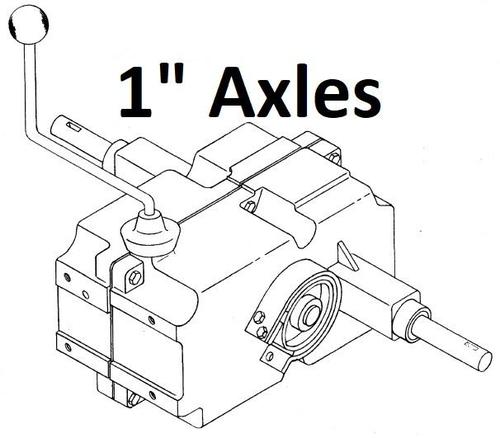

    Transmission Gear Uni-Drive 1" Axles.pdf

    By gwest_ca-(File Mod)

    Transmission Uni-Drive Axle
    Transmission Uni-Drive Axles

    First edition - March 7, 2020 - 9 pages 268KB
    Revision 1 - March 17, 2020 - 10 pages 276KB
    Will be revised when mistakes are corrected and new info appears

    Have left the models not using the Uni-Drive transmission so they are identified

    1" axles used in Uni-Drive transmissions
    3-Speed transmission models - 5003 (1958-1959), 5010 (1960-1961)
    3-speeds have the brake drum mounted on the 11/44 (mushroom) gear. Use Section I of the service manual.

    3-Speed transmission models - 5007 (1961), 5025 (1962-1964), 5046 (1964), 5048 (1965), 5049 (1965), and 5053 (1966-1969)
    3-speeds have the brake drum mounted on the 11/44 (mushroom) gear. Use Section II of the service manual.

    4-Speed transmission models - 5080 (1971), 5084 (1974-1975) and 5085 (1972-1974)
    4-speeds have the brake drum mounted on the cluster gear shaft. Use Section IV of the service manual.

    8-Speed transmission models - 5086 (1972-1973 and 1980-1984) and 110996 (1985-1993)
    8-speeds have the brake drum mounted on the cluster gear shaft. Use Section V of the service manual.

    10-5/8" x 1" diameter 3532 axle (Used 1958-1961 in gear models)
    10-5/8" x 1" diameter 3904 axle (Used 1961-1974 in gear models) - has 15 splines
    11-5/8" x 1" diameter 5961 axle (Used 1985-1993 in gear models) replaced by 101880 left and right 1" diameter axle (Also used 1965-1967 and 1973-1975 in hydro models)
    11-5/8" x 1" diameter 101880 axle (Used 1972-1984 in gear models)
    ????? x 1" diameter 102487 axle (Used 1972-1973 in gear models)

    3-Speed Applications
    1958 model RJ-58 - 5003 - 2 x 3532 10-5/8" axles (Axle seal 1257 1" ID)

    1959 model RJ-59 - 5003 - 2 x 3532 10-5/8" axles (Axle seal 1257 1" ID)

    1960 model 400 - 5010 -2 x 3532 10-5/8" axles (Axle seal 1257 1" ID)
    1960 model 550 - 5010 - 2 x 3532 10-5/8" axles (Axle seal 1257 1" ID)

    1961 model 401 - 5010 - 2 x 3532 10-5/8" axles (Axle seal 1257 1" ID)
    1961 model 551 - 5007 - 2 x 3904 10-5/8" axles (Axle seal 1257 1" ID)
    1961 model 701 - 5007 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)

    1962 model 32E Lawn Ranger - 5025 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)
    1962 model 32R Lawn Ranger - 5025 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)
    1962 model 502 - 5025 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)
    1962 model 552 - 5025 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)
    1962 model 702 - 5025 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)

    1963 model 33E Lawn Ranger - 5025 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)
    1963 model 33R Lawn Ranger - 5025 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)
    1963 model 603 - 5025 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)
    1963 model 633 - 5025 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)
    1963 model 653 - 5025 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)
    1963 model 753 - 5025 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)

    1964 model 34E Lawn Ranger - 5046 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)
    1964 model 34R Lawn Ranger - 5046 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)
    1964 model 604 - 5046 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)
    1964 model 654 - 5046 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)
    1964 model 704 - 5046 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)
    1964 model 754 - 5025 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)
    1964 model 854 - 5025 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)
    1964 model 1045 - 5025 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)

    1965 model 605 - 5049 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)
    1965 model 655 - 5049 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)
    1965 model 855 - 5049 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)
    1965 model 1055 - 5049 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)
    1965 model L-105 Lawn Ranger - 5048 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID) - 5048 could be updated to 5053 with 7168 kit
    1965 model L-155 Lawn Ranger - 5048 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID) - 5048 could be updated to 5053 with 7168 kit

    1966 model 606 - 5053 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)
    1966 model 656 - 5053 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)
    1966 model 706 - 5053 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)
    1966 model 856 - 5053 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)
    1966 model 1046 - 5053 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)
    1966 model 1056 - 5053 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)
    1966 model L-106 Lawn Ranger - 5053 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)
    1966 model L-156 Lawn Ranger - 5053 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)

    1967 model 607- 5053 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)
    1967 model 657 - 5053 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)
    1967 model 857 - 5053 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)
    1967 model L-107 Lawn Ranger - 5053 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)
    1967 model L-157 Lawn Ranger - 5053 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)

    1968 500 Special model 1-3631 - 5053 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)
    1968 Commando 6 model 1-4631 - 5053 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)
    1968 Commando 7 model 1-3731 - 5053 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)
    1968 Commando 8 model 1-4831 - 5053 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)
    1968 Commando 8 model 1-4832 - Assuming 5053 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID) Made in Belgium
    1968 Lawn Ranger model 1-1631 - 5053 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)
    1968 Lawn Ranger model 1-2631 - 5053 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)

    1969 Commando model 1-3741 - 5053 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID) - Made in Belgium
    1969 Commando V7 model 1-4741 - 5067 - Vertical shaft transmission
    1969 Commando V8 model 1-4841 - 5066 - Vertical shaft transmission
    1969 Lawn Ranger model 1-1641 - Model year a guess - made in Belgium and found in UK
    1969 Lawn Ranger model 1-8741 - Uses Peerless 617
    1969 Lawn Ranger model 1-8745 - Uses Peerless 617
    1969 WorkHorse 700 model 1-3741 - 5053 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)
    1969 WorkHorse 700 model 1-3745 - 5053 - 2 x 3904 10-5/8" axles (Axle seal 1232 1" ID)

    4-Speed and 8-Speed Applications
    1970 No 1" Uni-Drive axles used
    1970 Commando V7 model 1-4751 - 5067 - Vertical shaft transmission
    1970 Commando V7 model 1-4752 - 5067 - Vertical shaft transmission
    1970 Commando V8 model 1-4851 - 5066 - Vertical shaft transmission
    1970 Commando V8 model 1-4852 - 5066 - Vertical shaft transmission
    1970 Lawn Ranger model 1-8751 - 7hp - ES @ Toro - Uses Peerless 617
    1970 Lawn Ranger model 1-8752 - 8hp - ES @ Toro - Uses Peerless 617
    1970 Lawn Ranger model 1-8755 - 8hp - ES @ Toro - Uses Peerless 617
    1970 Lawn Ranger model 1-8756 - 8hp - ES @ Toro - Uses Peerless 617

    1971 800 Special model 1-0150 - (1-0150-6) - Peerless 101127 - Ipl # A-5279 - [18S in ipl] - 8hp Briggs and Stratton
    1971 CG-7 model 1-0275 - (1-0275-6) - 5075 - 2 x 100170 axles - (Axle seal 100607) - Vertical shaft transmission
    1971 CG-7R model 1-0270 - (1-0270-6) - 5075 - 2 x 100170 axles - (Axle seal 100607) - Vertical shaft transmission
    1971 Lawn Ranger model 2-0200 - (2-0200-6) - Peerless 5072 - Ipl # A-5279 - 7hp in PSB #414 - [1LRR in ipl] - 7hp Lauson recoil start
    1971 Lawn Ranger model 2-0210 - (2-0210-6) - Peerless 5072 - Ipl # A-5279 - 7hp in PSB #414 - [1LRE in ipl] - 7hp Lauson electric start
    1971 WorkHorse 800 model 1-0100 - (1-0100-6) - 5080 - 2 x 3904 10-5/8" axles - (Axle seal 100863 1" ID) - Ipl # A-5279 - [18W in ipl] - Axle retained by 1/4" x 1-1/2" roll pin 933217 - 8hp Lauson

    1972 CG-7 3-Speed model 1-0275 - (1-0275-7) - 5075 - 2 x 100170 axles - Vertical shaft transmission - (Axle seal 100607) - May be a 1971 model only
    1972 CG-7R 3-Speed model 1-0270 - (1-0270-7) - 5075 - 2 x 100170 axles - Vertical shaft transmission - (Axle seal 100607)
    1972 Commando 800 4-Speed model 1-0110 - (1-0110-7) - 5085 - 2 x 102487 axles - (Axle seal 100863 1" ID)
    1972 Lawn Ranger model 2-0200 - (2-0200-7) - Uses Peerless 617
    1972 Raider 8 model 1-0330 - (1-0330-7) - 5086 - 2 x 101880 11-5/8" axles - (Axle seal 100863 1" ID) - 4 pinions - Ipl # A-5309
    1972 Raider 10 model 1-0301 - (1-0301-7) - 5086 - 2 x 101880 11-5/8" axles - (Axle seal 100863 1" ID) - 4 pinions - Ipl # A-5309
    1972 Ranger 800 model 2-0211 - (2-0211-7) - Uses Peerless 617 - 8hp in PSB #414

    1973 8hp 4-Speed model 1-0120 - (1-0120-8) - 5085 - 2 x 102487 axles - (Axle seal 100863 1" ID) - Horizontal shaft - Ipl # A-5347 - (Also made in Belgium as Commando 800)
    1973 8hp 4-Speed model 1-0130 - (1-0130-8) - 5085 - 2 x 102487 axles - (Axle seal 100863 1" ID) - Horizontal shaft - Ipl # A-5347 - Commando 800?
    1973 8hp 4-speed model 1-0274 - (1-0274-8) - Vertical shaft Not listed at Toro Found serial 908861 It is listed in the WH belt charts
    1973 8hp 4-Speed model 1-0276 - (1-0276-8) - Vertical shaft
    1973 8hp 4-Speed model 1-0277 - (1-0277-8) - Vertical shaft
    1973 8hp 8-Speed model 1-0370 - (1-0370-8) - 5086 - 2 x 5961 11-5/8" replaced by 101880 axles - (Axle seal 100863 1" ID) - 4 pinions - Ipl # A-5343 - Horizontal shaft
    1973 10hp 8-Speed model 1-0360 - (1-0360-8) - 5086 - 2 x 5961 11-5/8" replaced by 101880 axles - (Axle seal 100863 1" ID) - 4 pinions - Ipl # A-5343 - One found made in Belgium
    1973 10hp 8-Speed model 1-0365 - (1-0365-8) - 5086 - 2 x 5961 11-5/8" replaced by 101880 axles - (Axle seal 100863 1" ID) - 4 pinions - Ipl # A-5343
    1973 Raider 10 8-Speed model 1-0360 - 5086 - 2 x 5961 11-5/8" replaced by 101880 axles - (Axle seal 100863 1" ID) - 4 pinions - Ipl # A-5343 - Made in Belgium
    1973 Ranger 700 model 2-0220 - (2-0220-8) - (Also made in Belgium) - Vertical shaft - 7hp in PSB #414
    1973 Ranger 800 model 2-0230 - (2-0230-8) - (Also made in Belgium) - Vertical shaft - 8hp in PSB #414

    1974 A-90 Special model 2-4300 - (2-4300-9) - Uses Peerless 1400 - Also made in Belgium
    1974 A-800 Ranger model 1-0280 - (1-0280-9) - Uses Peerless 648
    1974 A-800 Ranger model 1-0285 - (1-0285-9) - Uses Peerless 648
    1974 B-80 4-Speed model 1-0140 - (1-0140-9) - 5080 - 2 x 3904 10-5/8" axles - (Axle seal 100863 1" ID) (May be 5084 as listed @ Toro)
    1974 B-80 4-Speed model 1-0145 - (1-0145-9) - 5084 - 2 x 101880 axles - (Axle seal 100863 1" ID)
    1974 Commando 800 model 1-0140 - (1-0140-9) - 5080 - 2 x 3904 10-5/8" axles - (Axle seal 100863 1" ID) (May be 5084 as listed @ Toro)
    1974 Norlet Commander 8/36 model 2-4300 - Uses Peerless 1400
    1974 Norlet Ranger model 2-0243 - No record @ Toro
    1974 Raider 10 4-Speed model 1-0393 - (1-0393-9) - 5085 - 2 x 102487 axles - (Axle seal 100863 1" ID) - 4 pinions - Ipl # A-5343 - Made in Belgium
    1974 Raider 12 4-Speed model 1-0352 - (1-0352-9) - 5085 - 2 x 102487 axles - (Axle seal 100863 1" ID) - Made in Belgium

    1975 B-80 4-Speed model 1-0141 - 5084 - 2 x 101880 11-5/8" axles - (Axle seal 100863 1" ID) - 4 pinions - Ipl # 803981
    1975 B-145 Elec-Trak model 1-0720 - Uses Peerless 2318
    1975 C-100 4-Speed model 1-0394 - 5084 - 2 x 101880 11-5/8" axles - (Axle seal 100863 1" ID) - 4 pinions - Ipl # 3350-163
    1975 C-185 Elec-Trak model 1-0700 - Uses Peerless 2318
    1975 Commando 800 4-Speed 1-0141- 5084 - 2 x 101880 11-5/8" axles - (Axle seal 100863 1" ID) - 4 pinions - Ipl # 803981 &  Ipl # 3350-163 - Made in Belgium
    1975 Raider 10 4-Speed model 1-0394 - 5084 - 2 x 101880 11-5/8" axles - (Axle seal 100863 1" ID) - 4 pinions - Ipl # 803981 - Made in Belgium

    1976 No 1" Uni-Drive axles used
    1976 B-145 Elec-Trak model 1-0720 - Uses Peerless 2318
    1976 C-185 Elec-Trak model 1-0700 - Uses Peerless 2318

    1977 B-145 Elec-Trak model 1-0720- Uses Peerless 2318
    1977 C-80 4-Speed model 71-08K4 - Most likely a model 5084 - 2 x 101880 axles - (Axle seal 100863 1" ID) - Made in Belgium
    1977 C-185 Elec-Trak model 1-0700- Uses Peerless 2318

    1978 No 1" Uni-Drive axles used

    1979 No 1" Uni-Drive axles used

    1980 1100 Special model 01-11B803 - 5086 - 2 x 101880 axles - (Axle seal 100863 1" ID)
    .
    1981 GT-2500 8-Speed model 01-11B804 - 5086 - 2 x 101880 11-5/8" axles - (Axle seal 100863 1" ID)

    1982 GT-1142 8-Speed model A1-114201 - 5086 - 2 x 5961 11-5/8" replaced by 101880 axles - (Axle seal 100863 1" ID) - 4 pinions - ipl # 810286R1
    1982 GT-1642 Twin 8-Speed model A1-164201 - 5086 - 2 x 5961 11-5/8" replaced by 101880 axles - (Axle seal 100863 1" ID) - 4 pinions - ipl # 810286R1
    1982 SB-421 8-Speed model 01-11BH01 - 5086 - 2 x 101880 11-5/8" axles - (Axle seal 100863 1" ID)
    1982 SK-486 8-Speed model 01-16KH01 - 5086 - 2 x 101880 11-5/8" axles - (Axle seal 100863 1" ID)

    1983 GT-1142 8-Speed model A1-114202 - 5086 - 2 x 101880 11-5/8" axles - (Axle seal 100863 1" ID)
    1983 GT-1642 Twin 8-Speed model A1-164202 - 5086 - 2 x 101880 11-5/8" axles - (Axle seal 100863 1" ID)

    1984 GT-1100 8-speed model A1-11B801 - 5086 - 2 x 5961 11-5/8" replaced by 101880 axles - (Axle seal 100863 1" ID) - 4 pinions - Some use alternate differential carrier bearings See PSB #369 - Ipl # 810351R1
    1984 GT-1600 Twin 8-speed model A1-16B801 - 5086 - 2 x 5961 11-5/8" replaced by 101880 axles - (Axle seal 100863 1" ID) - 4 pinions - Some use alternate differential carrier bearings See PSB #369 - Ipl # 810351R1

    1985 310-8 model 21-10K801 - 110996 - 2 x 5961 11-5/8" axles - (Axle seal 100863 1" ID) - Uses 1533 differential carrier bearings (1-1/2x2-1/2x1/2in.)
    1985 312-8 model 21-12K801 - 110996 - 2 x 5961 11-5/8" axles - (Axle seal 100863 1" ID) - Uses 1533 differential carrier bearings (1-1/2x2-1/2x1/2in.)

    1985 314-8 model 21-14K801 - * Uses 1533 differential carrier bearings * (1-1/2x2-1/2x1/2in.)
    The Details pages shows the 314-8 using a 103916 transmission with 1-1/8" axles and 8 pinion gears.
    It should be a 110996 transmission with 1" axles and 4 pinion gears like the 1985 models 310-8 and 312-8 - Note - Forget how I learned this and may be wrong

    1986 308-8 model 21-08K801 - 110996 - 2 x 5961 11-5/8" axles - (Axle seal 100863 1" ID) - Uses 40mm carrier brg 111199
    1986 308-8 model 21-08K802 - 110996 - 2 x 5961 11-5/8" axles - (Axle seal 100863 1" ID) - Uses 1533 differential carrier bearings (1-1/2x2-1/2x1/2in.)
    1986 310-8 model 21-10K802 - 110996 - 2 x 5961 11-5/8" axles - (Axle seal 100863 1" ID) - Uses 40mm carrier brg 111199
    1986 310-8 model 21-10K803 - 110996 - 2 x 5961 11-5/8" axles - (Axle seal 100863 1" ID) - Uses 1533 differential carrier bearings (1-1/2x2-1/2x1/2in.)
    1986 312-8 model 21-12K802 - 110996 - 2 x 5961 11-5/8" axles - (Axle seal 100863 1" ID) - Uses 40mm carrier brg 111199
    1986 312-8 model 21-12K803 - 110996 - 2 x 5961 11-5/8" axles - (Axle seal 100863 1" ID) - Uses 1533 differential carrier bearings (1-1/2x2-1/2x1/2in.)
    1986 512-D model B1-12R801 - 110996 - 2 x 5961 11-5/8" axles - (Axle seal 100863 1" ID) - Uses 40mm carrier brg 111199
    1986 512-D model C1-12R801 - 110996 - 2 x 5961 11-5/8" axles - (Axle seal 100863 1" ID) -  Uses 40mm carrier brg 111199

    1987 308-8 model 21-08K803 - 110996 - 2 x 5961 11-5/8" axles - (Axle seal 100863 1" ID) - Uses 40mm carrier brg 111199
    1987 310-8 model 21-10K804 - 110996 - 2 x 5961 11-5/8" axles - (Axle seal 100863 1" ID) - Uses 40mm carrier brg 111199
    1987 312-8 model 21-12K804 - 110996 - 2 x 5961 11-5/8" axles - (Axle seal 100863 1" ID) - Uses 40mm carrier brg 111199

    1988 308-8 model 21-08K804 - 110996 - 2 x 5961 11-5/8" axles - (Axle seal 100863 1" ID)
    1988 310-8 model 21-10K805 - 110996 - 2 x 5961 11-5/8" axles - (Axle seal 100863 1" ID)
    1988 312-8 model 21-12K805 - 110996 - 2 x 5961 11-5/8" axles - (Axle seal 100863 1" ID)
    1988 312-8e model E1-12K801 - 110996 - 2 x 5961 11-5/8" axles - (Axle seal 100863 1" ID)
    1988 316-8e model B1-16O801 - 110996 - 2 x 5961 11-5/8" axles - (Axle seal 100863 1" ID)

    1989 310-8 model 21-10K806 - 110996 - 2 x 5961 11-5/8" axles - (Axle seal 100863 1" ID)
    1989 312-8 model 21-12K806 - 110996 - 2 x 5961 11-5/8" axles - (Axle seal 100863 1" ID)
    1989 312-8e model E1-12K802 - 110996 - 2 x 5961 11-5/8" axles - ([Axle seal 2 x 114677 1" ID x 1-1/4" OD] or [2 x 100863 1" ID x 1-1/2" OD]) - 40mm carrier brg 111199 - Export model - ipl # 899399
    1989 316-8e model E1-12K802 - 110996 - 2 x 5961 11-5/8" axles - ([Axle seal 2 x 114677 1" ID x 1-1/4" OD] or [2 x 100863 1" ID x 1-1/2" OD]) - 40mm carrier brg 111199 - Export model - ipl # 899399

    1990 310-8 model 31-10K801 - 110996 - 2 x 5961 11-5/8" axles - (Axle seal 100863 1" ID)
    1990 312-8 model 31-12K801 listed at Toro using 110996. Wrong and should be 110995 with 1-1/8" axles and 8 pinions
    1990 312-8e model E1-12K802 - 110996 - 2 x 5961 11-5/8" axles - ([Axle seal 2 x 114677 1" ID x 1-1/4" OD] or [2 x 100863 1" ID x 1-1/2" OD]) - 40mm carrier brg 111199 - Export model - ipl # 899399
    1990 316-8e model E1-12K802 - 110996 - 2 x 5961 11-5/8" axles - ([Axle seal 2 x 114677 1" ID x 1-1/4" OD] or [2 x 100863 1" ID x 1-1/2" OD]) - 40mm carrier brg 111199 - Export model - ipl # 899399

    1991 310-8 model 31-10K802 except serial numbers 11752, 11753, 11754 and 11755 use 1" axles and 4 pinion gears - ipl # 3314-853
    1991 310-8 model 31-10K802 Serial 1900001-1999999 - 110996 - 2 x 5961 11-5/8" axles - (Axle seals 4 x 100863 1" ID) - ipl # 3314-853

    1992 310-8 model 31-10K803 Serial 2900001-2999999 - 110996 - 2 x 5961 11-5/8" axles - (Axle seals 4 x 100863 1" ID) - ipl # 3315-196

    1993 310-8 model 73320 Serial 3900001-3999999 - 110996 - 2 x 5961 11-5/8" axles - (Axle seals 4 x 100863 1" ID????) - ipl # 3316-143 shows 2 x 1-1/8" seals


    337 downloads

    Updated

  12. Free

    Transmission Gear Uni-Drive 1-1/8" Axles.pdf

    By gwest_ca-(File Mod)

    Transmission Uni-Drive Axle
    Transmission Uni-Drive Axles

    First edition - March 7, 2020 - 13 pages 290KB
    Revision 1 - March 17, 2020 - 13 pages 290KB
    Will be revised when mistakes are corrected and new info appears

    ipl = original illustrated parts list
    Tipl = illustrated parts list from Toro Master Parts Viewer may not be accurate

    1-1/8" axles used in Uni-Drive transmissions
    3-Speed transmission models - 5045 (1963), 5047 (1964), 5051 (1965), 5058 (1967), 5059 (1966),
    3-speeds have the brake drum mounted on the 11/44 (mushroom) gear. Use Section II of the service manual.

    6-Speed transmission models - 5060 (1967-1968), 5071 (1969),
    6-speeds have the brake drum mounted on the 11/44 (mushroom) gear. Use Section III of the service manual.

    8-Speed transmission models - 5073 (1970-1973) , 5091 (1973-1976),
    103907 (1976-1977), 103916 (1978-1984), 103918 (1980-1983), 110995 (1985-1993),
    92-8707 (1993-2001), 92-8708 (1994-2005 and 2007)
    8-speeds have the brake drum mounted on the cluster gear shaft. Use Section V of the service manual.

    ?????? x 1-1/8" diameter 121384 replaces 6450, 6451, 7202, 7203, 101510 and 101511 - (Also used in hydro models) - My guess this one is 12" long. No reason why a longer axle couldn't replace a shorter one.
    The 7202 and 7203 were last used in 1973 so the 101510 and/or 101511 may have been service replacements and the 121384 replaced these two.
    ?????? x 1-1/8" diameter 2825 left axle (1963-1965) - No longer available - Left axle
    ?????? x 1-1/8" diameter 2824 right axle (1963-1965) - No longer available - Right axle
    11-1/8" x 1-1/8" diameter 6451 (1967) replaced by 121384 left axle - 6451 no longer available - (Also used in hydro models 1966-1968)
    11-1/4" x 1-1/8" diameter 7203 left axle (1967-1973) replaced by 121384 - 7203 no longer available - (Also used in hydro models 1968-1973)
    11-1/4" x 1-1/8" diameter 101511 replaced by 121384 - Unknown application
    11-5/8" x 1-1/8" diameter 102764 (1973-1976) replaced by 99-5359 kit left and right axles - 99-5359 still available March 10, 2020 $246.71 - (Also used in hydro models 1973-1976)
    11-3/4" x 1-1/8" diameter 6450 (1967) replaced by 121384 right axle - (Also used in hydro models 1966-1968)
    12" x 1-1/8" diameter 7202 (1967-1973) replaced by 121384 right axle - (Also used in hydro models 1968-1973)
    12" x 1-1/8" diameter 101510 replaced by 121384 - Unknown application - Length is a guess since the 101511 is 11-1/4" long
    13-1/8" x 1-1/8" diameter 105875 left and right axle (1976-2007) - 105875 still available March 10, 2020 $237.66 - (Also used in hydro models 1973-1981)
    121384 axle replaces 6450, 6451, 7202, 7203, 101510 and 101511 axles - 121384 no longer available

    Applications
    1963 model 953 - 5045 - Left axle 2825 Right axle 2824 - (Axle seal 1213 1-1/8" ID) - 2 bevel pinions - Ipl # 123

    1964 model 1054 - 5047 - Left axle 2825 Right axle 2824 - (Axle seal 1213 1-1/8" ID) - 2 bevel pinions - Ipl # 177

    1965 model 1054A - 5051 - Left axle 2825 Right axle 2824 - (Axle seal 1213 1-1/8" ID) - 2 bevel pinions - Ipl # 177-A

    1966 service replacement - 5059 - replaced 5045, 5047 and 5051 for the 953, 1054 and 1054A

    1967 model 867 - 5060 - Left axle 7203 11-1/4", Right axle 7202 12" - (Axle seal 1213 1-1/8" ID) - 10 pinion limited slip - Ipl # 348
    1967 model 1057 - 5058 - Left axle 6451 11-1/8", Right axle 6450 11-3/4" - Both replaced by 121384 nla- (Axle seal 1213 1-1/8" ID) - 2 bevel pinions - Ipl # 310 - OM IPL lists a 5080 (typo) model transmission and shows bevel pinion gears.
    1967 model 1067- 5060 - Left axle 7203 11-1/4", Right axle 7202 12" - (Axle seal 1213 1-1/8" ID) - 10 pinion limited slip - Ipl # 346-347
    1967 model 1257- 5058 - Left axle 6451 11-1/8", Right axle 6450 11-3/4" - Both replaced by 121384 nla - (Axle seal 1213 1-1/8" ID) - 2 bevel pinions - Ipl # 310 - OM IPL lists a 5080 (typo) model transmission and shows bevel pinion gears.
    1967 model 1267- 5060 - Left axle 7203 11-1/4", Right axle 7202 12" - (Axle seal 1213 1-1/8" ID) - 10 pinion limited slip - Ipl # 346-347

    1968 Raider 9 model 1-6931 - 5060 - Left axle 7203 11-1/4", Right axle 7202 12" - (Axle seal 1213 1-1/8" ID) - 10 pinion limited slip - Ipl # 359
    1968 Raider 12 model 1-6231 - 5060 - Left axle 7203 11-1/4", Right axle 7202 12" - (Axle seal 1213 1-1/8" ID) - 10 pinion limited slip - Ipl # 357

    1969 Raider 10 model 1-6041 - 5071 - Left axle 7203 11-1/4", Right axle 7202 12" - (Axle seal 1213 1-1/8" ID) - 10 pinion limited slip - Ipl # 1-6041-P
    1969 Raider 12 model 1-6241 - 5071 - Left axle 7203 11-1/4", Right axle 7202 12" - (Axle seal 1213 1-1/8" ID) - 10 pinion limited slip

    1970 Raider 10 model 1-6051 - 5073 - Left axle 7203 11-1/4", Right axle 7202 12" - (Axle seal 100443 1-1/8" ID) - 10 pinion limited slip - Ipl # A-5203
    1970 Raider 12 model 1-6251 - 5073 - Left axle 7203 11-1/4", Right axle 7202 12" - (Axle seal 100443 1-1/8" ID) - 10 pinion limited slip - Ipl # A-5203
    1970 Raider 12 model 1-6252 - 5073 - Left axle 7203 11-1/4", Right axle 7202 12" - (Axle seal 100443 1-1/8" ID) - 10 pinion limited slip
    1970 Raider 12 model 1-6253 - 5073 - Left axle 7203 11-1/4", Right axle 7202 12" - (Axle seal 100443 1-1/8" ID) - 10 pinion limited slip - Ipl # A-5203

    1971 Raider 10 model 1-0300 - (1-0300-6) - 5073 - Left axle 7203 11-1/4", Right axle 7202 12" - (Axle seal 100443 1-1/8" ID) - 10 pinion limited slip - 10R in ipl # A-5279 - 10hp Lauson
    1971 Raider 12 model 1-0310 - (1-0310-6) - 5073 - Left axle 7203 11-1/4", Right axle 7202 12" - (Axle seal 100443 1-1/8" ID) - 10 pinion limited slip - 12R in ipl # A-5279 - 12hp Kohler

    1972 Raider 12 model 1-0311 - (1-0311-7) - 5073 - Left axle 7203 11-1/4", Right axle 7202 12" - (Axle seal 100443 1-1/8" ID) - 10 pinion limited slip - Ipl # A-5309
    1972 Raider 14 model 1-0320 - (1-0320-7) - 5073 - Left axle 7203 11-1/4", Right axle 7202 12" - (Axle seal 100443 1-1/8" ID) - 10 pinion limited slip - Ipl # A-5309

    1973 8hp 4-speed model 1-0274 - (1-0274-8) - Vertical shaft Not listed at Toro. It is listed in the WH belt charts
    1973 8hp 4-Speed model 1-0276 - (1-0276-8) - Vertical shaft
    1973 8hp 4-Speed model 1-0277 - (1-0277-8) - Vertical shaft
    1973 12hp 8-Speed model 1-0350 - (1-0350-8) - 5073 - Left axle 7203 11-1/4", Right axle 7202 12" - (Axle seal 100443 1-1/8" ID) - 10 pinions - Ipl # A-5347
    1973 12hp 8-Speed model 1-0353 - 5091 - 2 x 102764 11-5/8" axles - (Axle seal 100443 1-1/8" ID) - Listed in PSB #301E for 1973-74. Suspect 1973 is wrong - Has shown up made in Belgium as a Raider 12
    1973 12hp 8-Speed model 1-0354 - Listed in PSB #301E for 1973-74. Suspect 1973 is wrong - Has shown up also made in Belgium
    1973 12hp 8-Speed model 1-0355 - (1-0355-8) - 5091 - 2 x 102764 11-5/8" axles - (Axle seal 100443 1-1/8" ID)
    1973 14hp 8-Speed model 1-0340 - (1-0340-8) - 5073 - Left axle 7203 11-1/4", Right axle 7202 12" - (Axle seal 100443 1-1/8" ID) - 10 pinions - Ipl # A-5347
    1973 Raider 12 8-Speed model 1-0350 - 5073 - Left axle 7203 11-1/4", Right axle 7202 12" - (Axle seal 100443 1-1/8" ID) - 10 pinions - Ipl # A-5347 - Made in Belgium
    1973 Raider 12 8-Speed model 1-0355 - (1-0355-8) - 5091 - 2 x 102764 11-5/8" axles - (Axle seal 100443 1-1/8" ID)

    1974 C-100 8-Speed model 1-0390 - (1-0390-9) - 5091 - 2 x 102764 11-5/8" axles - (Axle seal 100443 1-1/8" ID)
    1974 C-120 8-Speed model 1-0353 - (1-0353-9) - 5091 - Also made in Belgium - Serial 997047 is US production
    1974 C-120 8-Speed model 1-0354 - (1-0354-9) - 5091 - 2 x 102764 11-5/8" axles - (Axle seal 100443 1-1/8" ID)
    1974 C-120 8-Speed model 1-0356 - (1-0356-9) - 5091 - 2 x 102764 11-5/8" axles - (Axle seal 100443 1-1/8" ID)
    1974 C-160 8-Speed model 1-0380 - (1-0380-9) - 5091 - 2 x 102764 11-5/8" axles - (Axle seal 100443 1-1/8" ID)
    1974 C-160 8-Speed model 1-0385 - (1-0385-9) - 5091 - 2 x 102764 11-5/8" axles - (Axle seal 100443 1-1/8" ID)
    1974 Raider 10 8-Speed model 1-0390 - (1-0390-9) - 5091 - 2 x 102764 11-5/8" axles - (Axle seal 100443 1-1/8" ID) - Made in Belgium
    1974 Raider 12 8-speed model 1-0353 - (1-0353-9) - 5091 - 2 x 102764 axles - (Axle seal 100443 1-1/8" ID) - Made in Belgium
    1974 Raider 14 8-speed model 1-0380 - (1-0380-9) - 5091 - 2 x 102764 axles - (Axle seal 100443 1-1/8" ID) - Made in Belgium - (C-160 8-Speed in USA)

    1975 B-145 Elec-Trak model 1-0720 - Uses Peerless 2318
    1975 C-100 8-Speed model 1-0391 - 5091 - 2 x 102764 11-5/8" axles - (Axle seal 100443 1-1/8" ID) - 8 pinions - Ipl # 803983 - (Also made in Belgium)
    1975 C-120 8-Speed model 1-0357 - 5091 - 2 x 102764 11-5/8" axles - (Axle seal 100443 1-1/8" ID)
    1975 C-120 8-Speed model 1-0375 - 5091 - 2 x 102764 11-5/8" axles - (Axle seal 100443 1-1/8" ID) - Decaled C-120 Special
    1975 C-120 8-Speed model 1-0395 - 5091 - 2 x 102764 11-5/8" axles - (Axle seal 100443 1-1/8" ID) - 8 pinions - Ipl # 803983
    1975 C-120 8-Speed model 1-0396 - 5091 - 2 x 102764 11-5/8" axles - (Axle seal 100443 1-1/8" ID)
    1975 C-160 8-Speed model 1-0381 - 5091 - 2 x 102764 11-5/8" axles - (Axle seal 100443 1-1/8" ID) - 8 pinions - Ipl # 803983
    1975 C-185 Elec-Trak model 1-0700 -  - Uses Peerless 2318
    1975 Raider 12 8-Speed model 1-0357 - 5091 - 2 x 102764 11-5/8" axles - (Axle seal 100443 1-1/8" ID) - Made in Belgium
    1975 Raider 12 8-Speed model 1-0375 - 5091 - 2 x 102764 11-5/8" axles - (Axle seal 100443 1-1/8" ID) - Made in Belgium

    1976 B-60 8-Speed model 61-07K801 -  5091 - 2 x 102764 11-5/8" axles - (Axle seal 100443 1-1/8" ID)
    1976 B-60 8-Speed model 61-07K802 -  5091 - 2 x 102764 11-5/8" axles - (Axle seal 100443 1-1/8" ID)
    1976 B-80 8-Speed model 61-08K801 - 5091 - 2 x 102764 11-5/8" axles - (Axle seal 100443 1-1/8" ID) Incorrectly named a B-60 @ Toro -
    1976 B-80 8-Speed model 61-08K802 - 5091 - 2 x 102764 11-5/8" axles - (Axle seal 100443 1-1/8" ID) Incorrectly named a B-60 @ Toro -
    1976 B-80 8-Speed model 61-08K803 - 103907 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID)
    1976 B-80 8-Speed model 61-08K804 - 5091 - 2 x 102764 11-5/8" axles - (Axle seal 100443 1-1/8" ID) Incorrectly named a B-60 @ Toro -
    1976 B-100 8-Speed model 61-10K801 - 5091 - 2 x 102764 11-5/8" axles - (Axle seal 100443 1-1/8" ID)
    1976 B-100 8-Speed model 61-10K802 -  5091 - 2 x 102764 11-5/8" axles - (Axle seal 100443 1-1/8" ID)
    1976 B-100 8-Speed model 61-10K803 - 103907 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID)
    1976 B-100 8-Speed model 61-10K804 -  5091 - 2 x 102764 11-5/8" axles - (Axle seal 100443 1-1/8" ID)
    1976 B-145 Elec-Trak model 1-0720 - Uses Peerless 2318
    1976 C-120 8-Speed model 61-12K801 - 5091 - 2 x 102764 11-5/8" axles - (Axle seal 100443 1-1/8" ID)
    1976 C-120 8-Speed model 61-12K802 - 5091 - 2 x 102764 11-5/8" axles - (Axle seal 100443 1-1/8" ID)
    1976 C-120 8-Speed model 61-12K803 - 103907 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID)
    1976 C-120 8-Speed model 61-12K804 - 5091 - 2 x 102764 11-5/8" axles - (Axle seal 100443 1-1/8" ID)
    1976 C-140 8-Speed model 61-14K8 - Made in Belgium
    1976 C-160 8-Speed model 61-16K801 - 5091 - 2 x 102764 11-5/8" axles - (Axle seal 100443 1-1/8" ID)
    1976 C-160 8-Speed model 61-16K802 -  5091 - 2 x 102764 11-5/8" axles - (Axle seal 100443 1-1/8" ID)
    1976 C-160 8-Speed model 61-16K803 - 103907 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID)
    1976 C-160 8-Speed model 61-16K804 -  5091 - 2 x 102764 11-5/8" axles - (Axle seal 100443 1-1/8" ID)
     1976 C-185 Elec-Trak model 1-0700 - Uses Peerless 2318

    1977 B-60 8-Speed model 71-07K801 - 103907 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID) - 8 pinions - Ipl # 803699
    1977 B-80 8-Speed model 71-08K801 - 103907 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID) - 8 pinions - Ipl # 803699
    1977 B-100 8-Speed model 71-10K801 - 103907 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID) - 8 pinions - Ipl # 803699 - (Also made in Belgium)
    1977 B-145 Elec-Trak model 1-0720 - Uses Peerless 2318
    1977 C-100 8-Speed model 71-10K8 - Assuming - 103907 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID)  (Made in Belgium)
    1977 C-120 8-Speed model 71-12K801 - 103907 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID) - 8 pinions - Ipl # 803699
    1977 C-140 8-Speed model 71-14K8 - Assuming - 103907 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID)  (Made in Belgium)
    1977 C-160 8-Speed model 71-16K801 - 103907 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID)
    1977 C-160 8-Speed model 71-16K802 - 103907 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID) - 8 pinions - Ipl # 803699
    1977 C-185 Elec-Trak model 1-0700 - Uses Peerless 2318
    1977 Raider 10 model 71-10K801- 103907 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID) - 8 pinions - Ipl # 803699  - Made in Belgium

    1978 C-81 8-Speed model 81-08K801 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID)
    1978 C-101 8-Speed model 81-10K801 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID)
    1978 C-121 8-Speed model 81-12K801 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID) (Also made in Belgium)
    1978 C-141 8-Speed model 81-14K801 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID) (Also made in Belgium)
    1978 C-161 8-Speed model 81-16K801 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID)
    1978 C-161 Twin 8-Speed model 81-16B801 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID)
    1978 E-141 8-Speed model 01-14E801 - 103918 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID) PSB #226 lists the E-141 as being a 1978 model. 1980-83 at Toro.

    1979 C-81 8-Speed model 91-08K801 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID)
    1979 C-81 8-Speed model 91-08K802 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID) - ipl #810118R1
    1979 C-81 8-Speed model 91-08K891 (Made in Belgium)
    1979 C-101 8-Speed model 91-10K801 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID)
    1979 C-101 8-Speed model 91-10K802 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID) - ipl #810118R1
    1979 C-101 8-Speed model 91-10K892 (Made in Belgium)
    1979 C-111 8-Speed model 91-11B801 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID) - ipl #810118R1
    1979 C-121 8-Speed model 91-12K801 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID)
    1979 C-121 8-Speed model 91-12K802 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID) - ipl #810118R1
    1979 C-121 8-Speed model 91-12K891 (Made in Belgium)
    1979 C-121 8-Speed model 91-12K892 (Made in Belgium)
    1979 C-141 8-Speed model 91-14K801 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID)
    1979 C-141 8-Speed model 91-14K802 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID) - ipl #810118R1
    1979 C-161 8-Speed model 91-16K801 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID) - ipl #810118R1 - (5086 using 1" axles at Toro)
    1979 C-161 Twin 8-Speed model 91-16B801 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID) - Tipl - (5086 using 1" axles at Toro)
    1979 C-161 Twin 8-Speed model 91-16B802 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID) - ipl #810118R1 - (5086 using 1" axles at Toro)
    1979 E-141 8-Speed model 01-14E801 - 103918 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID) PSB #226 lists the E-141 as being a 1978 model. - 1980-83 at Toro.

    1980 C-85 8-Speed model 01-08K801 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID) Incorrectly named a C-81 @ Toro
    1980 C-85 8-Speed model 01-08K802 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID)
    1980 C-105 8-Speed model 01-10K801 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID)
    1980 C-125 8-Speed model 01-12K801 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID)
    1980 C-145 8-Speed model 01-14K801 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID)
    1980 C-145 8-Speed model 01-14K891 (Made in Belgium)
    1980 C-165 8-Speed model 01-16K801 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID)
    1980 C-175 Twin 8-Speed model 01-17K801 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID)
    1980 E-141 8-Speed model 01-14E801 - 103918 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID) PSB #226 lists the E-141 as being a 1978 model. 1980-83 at Toro.

    1981 C-85 8-Speed model 01-08K802 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID) Incorrectly named a C-81 @ Toro
    1981 C-105 8-Speed model 01-10K802 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID)
    1981 C-125 8-Speed model 01-12K802 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID)
    1981 C-145 8-Speed model 01-14K802 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID)
    1981 C-165 8-Speed model 01-16K802 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID)
    1981 C-175 Twin 8-Speed model 01-17K802 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID)
    1981 E-141 8-Speed model 01-14E801 - 103918 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID) PSB #226 lists the E-141 as being a 1978 model. 1980-83 at Toro.

    1982 C-85 8-Speed model 01-08K803 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID)
    1982 C-105 8-Speed model 01-10K803 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID)
    1982 C-125 8-Speed model 01-12K803 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID)
    1982 C-175 Twin 8-Speed model 01-17K803 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID)
    1982 E-141 8-Speed model 01-14E801 - 103918 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID) PSB #226 lists the E-141 as being a 1978 model. 1980-83 at Toro.

    1983 C- 85 8-Speed model 11-08K801 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID)
    1983 C-105 8-Speed model 11-10K801 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID)
    1983 C-125 8-Speed model 11-12K801 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID)
    1983 C-175 Twin 8-Speed model 11-17K801 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID)
    1983 E-141 8-Speed model 01-14E801 - 103918 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID) PSB #226 lists the E-141 as being a 1978 model. 1980-83 at Toro.

    1984 C-105 8-speed model 11-10K802 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID)- Some use alternate differential carrier bearings See PSB #369
    1984 C-125 8-speed model 11-12K802 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID) - Some use alternate differential carrier bearings See PSB #369
    1984 C-165 8-speed model 11-16K801 - 103916 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID) - Some use alternate differential carrier bearings See PSB #369

    1985 416-8 model 31-16K801 - 110995 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID) 1-1/2" carrier brg (1-1/2x2-1/2x1/2in.)
    1985 417-8 model 31-17K801 - 110955 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID) 1-1/2" carrier brg (1-1/2x2-1/2x1/2in.)

    1986 414-8 model 31-14K801 - 110995 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID) - 40mm carrier brg
    1986 416-8 model 31-16K802 - 110995 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID) - 40mm carrier brg
    1986 417-8 model 31-17K802 - 110995 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID) - 40mm carrier brg

    1987 414-8 model 31-14K802 - 110995 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID) - 40mm carrier brg
    1987 416-8 model 31-16K803 - 110995 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID) - 40mm carrier brg
    1987 418-8 model 31-18K801 - 110995 - 2 x 105875 13-1/8" axles - (Axle seal 100443 1-1/8" ID) - 40mm carrier brg

    1988 414-8 model 31-14K803 - 110995 - 2 x 2 x 105875 13-1/8" axles - ([Axle seal 2 x 100443 1-1/8" ID x 1-3/8" OD] or [2 x 6449 1-1/8" ID x 1-5/8" OD]) - 40mm carrier brg - Tipl
    1988 416-8 model 31-16K804 - 110995 - 2 x 2 x 105875 13-1/8" axles - ([Axle seal 2 x 100443 1-1/8" ID x 1-3/8" OD] or [2 x 6449 1-1/8" ID x 1-5/8" OD]) - 40mm carrier brg - Tipl

    1989 414-8 model 31-14K804 - 110995 - 2 x 2 x 105875 13-1/8" axles - ([Axle seal 2 x 100443 1-1/8" ID x 1-3/8" OD] or [2 x 6449 1-1/8" ID x 1-5/8" OD]) - 40mm carrier brg - Tipl
    1989 416-8 model 31-16O801 - 110995 - 2 x 2 x 105875 13-1/8" axles - ([Axle seal 2 x 100443 1-1/8" ID x 1-3/8" OD] or [2 x 6449 1-1/8" ID x 1-5/8" OD]) - 40mm carrier brg - Tipl

    1990 312-8 model 31-12K801 listed at Toro. Wrong and should be 110995 with 1-1/8" axles and 8 pinions
    1990 312-8 model 31-12K801 - 110995 - 2 x 105875 13-1/8" axles - (Axle seal 2 x 100443 1-1/8" ID) - 40mm carrier brg - Tipl
    1990 continued
    1990 312-8e model R1-12K802 - 110995 - 2 x 105875 13-1/8" axles - (Axle seal 4 x 100443 1-1/8" ID) - 40mm carrier brg - Exported model - ipl # 899004
    1990 316-8e model R1-16O802 - 110995 - 2 x 105875 13-1/8" axles - (Axle seal 4 x 100443 1-1/8" ID) - 40mm carrier brg - Exported model - ipl # 899004
    1990 416-8 model 31-16O802 - 110995 - 2 x 105875 13-1/8" axles - (Axle seal 2 x 100443 1-1/8" ID) - 40mm carrier brg - Tipl
    1990 520-8 model 41-20O801 - 110995 - 2 x 105875 13-1/8" axles - (Axle seal 2 x 100443 1-1/8" ID) - 40mm carrier brg - 8 pinions? - Tipl shows 4 pinions

    1991 310-8 model 31-10K802 serial numbers 11752, 11753, 11754 and 11755 use 1-1/8" axles and 4 pinion gears - Source 1991 - ipl # 3314-853
    1991 310-8 model 31-10K802 - 110995 - 2 x 105875 13-1/8" axles - (Axle seal 2 x 100443 1-1/8" ID) - 40mm carrier brg - ipl # 3314-853
    1991 312-8 model 31-12K802 Serial 1900001-1999999 - 110995 - 2 x 105875 13-1/8" axles - (Axle seal 2 x 100443 1-1/8" ID) - 40mm carrier brg - ipl # 3314-853
    1991 416-8 model 31-16O803 Serial 1900001-1999999 - 110995 - 2 x 105875 13-1/8" axles - (Axle seal 2 x 100443 1-1/8" ID) - 40mm carrier brg9 - ipl # 3314-853

    1992 312-8 model 31-12K804 Serial 2900001-2999999 - 110995 - 2 x 105875 13-1/8" axles - (Axle seal 2 x 100443 1-1/8" ID) - 40mm carrier brg - ipl # 3315-196
    1992 312-8e model R1-12K804 Serial 2900001-2999999 - 110995 - 2 x 105875 13-1/8" axles - (Axle seal 2 x 100443 1-1/8" ID) - 40mm carrier brg - ipl # 3315-247 - Exported
    1992 316-8e model R1-16O804 Serial 2900001-2999999 - 110995 - 2 x 105875 13-1/8" axles - (Axle seal 2 x 100443 1-1/8" ID) - 40mm carrier brg - ipl # 3315-325 - Exported
    1992 416-8 model 31-16O804 Serial 2900001-2999999 - 110995 - 2 x 105875 13-1/8" axles - (Axle seal 2 x 100443 1-1/8" ID) - 40mm carrier brg - ipl # 3315-196

    Toro lists the following as using 92-8708 transmission with 8 pinions and double axle seals but the parts lists have 110995 with 8 pinions and a single axle seal.
    1993 314-8 model 73400 Serial 3900001-3999999 - 110995 - 2 x 105875 13-1/8" axles - (Axle seal 2 x 100443 1-1/8" ID) - 40mm carrier brg - ipl # 3316-139 - 92-8708 trans model at Toro
    1993 416-8 model 73420 Serial 3900001-3999999 - 110995 - 2 x 105875 13-1/8" axles - (Axle seal 2 x 100443 1-1/8" ID) - 40mm carrier brg - ipl # 3316-141A - 92-8708 trans model at Toro
    1993 416-8e model 73440 Serial 3900001-3999999 - 110995 - 2 x 105875 13-1/8" axles - (Axle seal 2 x 100443 1-1/8" ID) - 40mm carrier brg - ipl # 3316-141A - 92-8708 trans model at Toro - Exported

    1994 312-8 model 73362 Serial 4900001-4999999 - 92-8707 - 2 x 105875 13-1/8" axles - (Axle seal 4 x 100443 1-1/8" ID) - 40mm carrier brg - 4 pinions - ipl # 3316-405
    1994 314-8 model 73400 Serial 4900001-4999999 - 92-8708 - 2 x 105875 13-1/8" axles - (Axle seal 4 x 100443 1-1/8" ID) - 40mm carrier brg - 8 pinions - ipl # 3316-920
    1994 312-8e model 73380 Serial 4900001-4999999 - 92-8708 - 2 x 105875 13-1/8" axles - (Axle seal 4 x 100443 1-1/8" ID) - 40mm carrier brg - 8 pinions - ipl # 3316-897 - Exported
    1994 416-8 model 73420 Serial 4900001-4999999 - 92-8708 - 2 x 105875 13-1/8" axles - (Axle seal 4 x 100443 1-1/8" ID) - 40mm carrier brg - 8 pinions - ipl # 3316-927
    1994 416-8e model 73440 Serial 4900001-4999999 - 92-8708 - 2 x 105875 13-1/8" axles - (Axle seal 4 x 100443 1-1/8" ID) - 40mm carrier brg - 8 pinions - ipl # 3316-927 - Exported

    1995 312-8 model 73362 Serial 5900001-5999999 - 92-8707 - 2 x 105875 13-1/8" axles - (Axle seal 4 x 100443 1-1/8" ID) - 40mm carrier brg - 4 pinions - ipl # 3316-405
    1995 314-8 model 73400 Serial 5900001-5999999 - 92-8708 - 2 x 105875 13-1/8" axles - (Axle seal 4 x 100443 1-1/8" ID) - 40mm carrier brg - 8 pinions - ipl # 3316-920
    1995 416-8 model 73420 Serial 5900001-5900614 - 92-8708 - 2 x 105875 13-1/8" axles - (Axle seal 4 x 100443 1-1/8" ID) - 40mm carrier brg - 8 pinions - Tipl
    1995 416-8 model 73420 Serial 5900615-5999999 - 92-8708 - 2 x 105875 13-1/8" axles - (Axle seal 4 x 100443 1-1/8" ID) - 40mm carrier brg - 8 pinions - ipl # 3317-889
    1995 416-8e model 73440 Serial 5900001-5900222 - 92-8708 - 2 x 105875 13-1/8" axles - (Axle seal 4 x 100443 1-1/8" ID) - 40mm carrier brg - 8 pinions - ipl # 3316-927 - Exported
    1995 416-8e model 73440 Serial 5900223-5999999 - 92-8708 - 2 x 105875 13-1/8" axles - (Axle seal 4 x 100443 1-1/8" ID) - 40mm carrier brg - 8 pinions - ipl # 3317-889 - Exported

    1996 312-8 model 73362 Serial 6900001-6999999 - 92-8707 - 2 x 105875 13-1/8" axles - (Axle seal 4 x 100443 1-1/8" ID) - 40mm carrier brg - 4 pinions - ipl # 3316-405
    1996 312-8 model 73363 Serial 6900001-6999999 - 92-8707 - 2 x 105875 13-1/8" axles - (Axle seal 4 x 100443 1-1/8" ID) - 40mm carrier brg - 4 pinions - ipl # 3318-518 (Gold trim)
    1996 314-8 model 73400 Serial 6900001-6999999 - 92-8708 - 2 x 105875 13-1/8" axles - (Axle seal 4 x 100443 1-1/8" ID) - 40mm carrier brg - 8 pinions - ipl # 3316-920
    1996 314-8 model 73402 Serial 6900001-6999999 - 92-8708 - 2 x 105875 13-1/8" axles - (Axle seal 4 x 100443 1-1/8" ID) - 40mm carrier brg - 8 pinions - ipl # 3318-519 (Gold trim)
    1996 416-8 model 73420 Serial 6900001-6999999 - 92-8708 - 2 x 105875 13-1/8" axles - (Axle seal 4 x 100443 1-1/8" ID) - 40mm carrier brg - 8 pinions - ipl # 3317-889
    1996 416-8 model 73422 Serial 6900001-6999999 - 92-8708 - 2 x 105875 13-1/8" axles - (Axle seal 4 x 100443 1-1/8" ID) - 40mm carrier brg - 8 pinions - ipl # 3318-521 (Gold trim)
    1996 416-8e model 73441 Serial 6900001-6999999 - 92-8708 - 2 x 105875 13-1/8" axles - (Axle seal 4 x 100443 1-1/8" ID) - 40mm carrier brg - 8 pinions - ipl # 3318-522 (Gold trim) - Exported

    1997 312-8 model 73363 Serial 7900001-7999999 - 92-8707 - 2 x 105875 13-1/8" axles - (Axle seal 4 x 100443 1-1/8" ID) - 40mm carrier brg - 4 pinions - ipl # 3319-158
    1997 314-8 model 73402 Serial 7900001-7999999 - 92-8708 - 2 x 105875 13-1/8" axles - (Axle seal 4 x 100443 1-1/8" ID) - 40mm carrier brg - 8 pinions - ipl # 3319-159
    1997 416-8 model 73422 Serial 7900001-7999999 - 92-8708 - 2 x 105875 13-1/8" axles - (Axle seal 4 x 100443 1-1/8" ID) - 40mm carrier brg - 8 pinions - ipl # 3319-161
    1997 416-8e model 73441 Serial 7900001-7999999 - 92-8708 - 2 x 105875 13-1/8" axles - (Axle seal 4 x 100443 1-1/8" ID) 40mm carrier brg - 8 pinions - ipl # 3319-162 - Exported

    1998 312-8 model 73428 Serial 8900001-8999999 - 92-8707 - 2 x 105875 13-1/8" axles - (Axle seal 4 x 100443 1-1/8" ID) - 40mm carrier brg - 4 pinions - ipl # 3319-710
    1998 314-8 model 73448 Serial 8900001-8999999 - 92-8708 - 2 x 105875 13-1/8" axles - (Axle seal 4 x 100443 1-1/8" ID) - 40mm carrier brg - 8 pinions - ipl # 3319-711

    1999 312-8 model 73429 Serial 9900001-9999999 - 92-8707 - 2 x 105875 13-1/8" axles - (Axle seal 4 x 100443 1-1/8" ID) - 40mm carrier brg - 4 pinions - ipl # 3322-109
    1999 314-8 model 73449 Serial 9900001-9999999 - 92-8708 - 2 x 105875 13-1/8" axles - (Axle seal 4 x 100443 1-1/8" ID) - 40mm carrier brg - 8 pinions - ipl # 3322-109

    2000 312-8 model 73429 Serial 200000001-200999999 - 92-8707 - 2 x 105875 13-1/8" axles - (Axle seal 4 x 100443 1-1/8" ID) - 40mm carrier brg - 4 pinions - ipl # 3324-231
    2000 314-8 model 73449 Serial 200000001-200999999 - 92-8708 - 2 x 105875 13-1/8" axles - (Axle seal 4 x 100443 1-1/8" ID) - 40mm carrier brg - 8 pinions - ipl # 3324-231

    2001 312-8 model 73429 Serial 210000001-210999999 - 92-8707 - 2 x 105875 13-1/8" axles - (Axle seal 4 x 100443 1-1/8" ID) - 40mm carrier brg - 4 pinions - ipl # 3324-710
    2001 314-8 model 73449 Serial 210000001-210999999 - 92-8708 - 2 x 105875 13-1/8" axles - (Axle seal 4 x 100443 1-1/8" ID) - 40mm carrier brg - 8 pinions - ipl # 3324-710

    2002 315-8 model 73450 Serial 220000001-220999999 - 92-8708 - 2 x 105875 13-1/8" axles - (Axle seal 4 x 100443 1-1/8" ID) - 40mm carrier brg - 8 pinions - ipl # 3326-314

    2003 315-8 model 73450 Serial 230000001-230999999 - 92-8708 - 2 x 105875 13-1/8" axles - (Axle seal 4 x 100443 1-1/8" ID) - 40mm carrier brg - 8 pinions - ipl # 3328-744

    2004 315-8 model 73450 Serial 240000001-240999999 - 92-8708 - 2 x 105875 13-1/8" axles - (Axle seal 4 x 100443 1-1/8" ID) - 40mm carrier brg - 8 pinions - ipl # 3328-744

    2005 GT Classic model 73450 Serial 250000001-250999999 - 92-8708 - 2 x 105875 13-1/8" axles - (Axle seal 4 x 100443 1-1/8" ID) - 40mm carrier brg - 8 pinions - ipl # 3353-258

    2007 GT Classic model 73450 Serial 270000001-270999999 - 92-8708 - 2 x 105875 13-1/8" axles - (Axle seal 4 x 100443 1-1/8" ID) - 40mm carrier brg - 8 pinions - ipl # 3353-258

    410 downloads

    Updated

  13. Free

    Transmission Gear Uni-drive 4-speed 1.000in axle 4-pinion 5080 1971 IPL.pdf

    By gwest_ca-(File Mod)

    Model 5080
    IPL
    1" axles
    4 two-piece pinion gear differential four-speed
    2 pages 182.88KB

    4-speeds have the brake drum mounted on the cluster gear shaft. Use Section IV of the service manual.

    5080 transmission used in
    1971 WorkHorse 800 model 1-0100
    1974 B-80 4-speed model 1-0140 as listed in transmission service manual #492-4004 (May be 5084 as listed @ Toro)

    5080 shown in the 1967 1057 and 1257 ipl with bevel pinion gears which is wrong. Suspect it is a typo and should be model 5058.
    5080 uses 2 bevel pinions and 5058 uses 4 spur gears.

    100 downloads

    Updated

  14. Free

    Transmission Gear Uni-drive 1958-1982 SM LR #A-1392.pdf

    By admin-(Admin)

    Service manual
    56 pages 3.35MB

    Low resolution

    Form No. A-1392
    P/N 492-4004

    1,769 downloads

    Updated

  15. Free

    Transmission Gear Uni-drive 3-speed 1.000in axle 4-pinion 5053 1966-1969 IPL.pdf

    By gwest_ca-(File Mod)

    Model 5053
    IPL
    2 pages 973.29KB

    1" axles 2 of 3904 10-5/8" long
    4 two-piece pinion differential three-speed

    3-speeds have the brake drum mounted on the 11/44 (mushroom) gear. Use Section II of the service manual.

    For low resolution transmission service manual see
    For high resolution transmission service manual see

    Model 5053 replaced 5007, 5025, 5046 and 5049
    Suspect the model 5043 at the Toro Master Parts Viewer is a typo and should read 5053

    Model 5053 transmission used in

    1966 model 606
    1966 model 656
    1966 model 706
    1966 model 856
    1966 model 1046
    1966 model 1056
    1966 model L-106 Lawn Ranger
    1966 model L-156 Lawn Ranger

    1967 model 657
    1967 model 857
    1967 model L-107 Lawn Ranger
    1967 model L-157 Lawn Ranger

    1968 Lawn Ranger model 1-1631
    1968 Lawn Ranger model 1-2631
    1968 500 Special model 1-3631
    1968 Commando 6 model 1-4631
    1968 Commando 7 model 1-3731 - Made in USA and exported to Europe - No info available so this application is a guess
    1968 Commando 8 model 1-4831

    1969 WorkHorse 700 model 1-3741
    1969 WorkHorse 700 model 1-3745

    209 downloads

    Updated

  16. Free

    Transmission Gear Uni-drive 6-speed 1.125in axle 10-pinion LS 5071 1969 IPL.pdf

    By gwest_ca-(File Mod)

    Model 5071
    IPL
    2 pages 123.73KB

    1-1/8" axles Uses 7202 replaced by 121384 12" right axle and 7203 11-1/4" left axle and 937022 Woodruff #15 keys - 1/4" x 1") [937002 replaced by 937022 - May be a typo]
    Axle 101511 also shows as being replaced by 121384
    10 pinion limited slip differential six-speed
    5071 replaced by 5073 in 1970

    6-speeds have the brake drum mounted on the 11/44 (mushroom) gear. Use Section III of the service manual.
    Aluminum side plates on the 5060 differential...steel side plates on the 5071

    For low resolution transmission service manual see
    For high resolution transmission service manual see
    5071 used in
    1969 Raider 10 model 1-6041
    1969 Raider 12 model 1-6241

    133 downloads

    Updated

  17. Free

    Transmission Gear Uni-drive 3-speed 1.000in axle 4-pinion 5049 1965 IPL.pdf

    By gwest_ca-(File Mod)

    Model 5049
    IPL
    1" axles 2 of 3904 10-5/8" long
    4 two-piece pinion differential three-speed
    1 page 321.28KB

    3-speeds have the brake drum mounted on the 11/44 (mushroom) gear. Use Section II of the service manual.

    For low resolution transmission service manual see
    For high resolution transmission service manual see

    Model 5049 replaced 5007, 5025 and 5046
    New shift rails in 1965
    Model 5049 replaced by 5053 for 1966-1969

    Model 5049 transmission used in
    1965 model 605
    1965 model 655
    1965 model 855
    1965 model 1055

    86 downloads

    Updated

  18. Free

    Transmission Gear Uni-drive 3-speed 1.000in axle 4-pinion 5046 1964 IPL.pdf

    By gwest_ca-(File Mod)

    Model 5046
    IPL
    1" axles 2 of 3904 10-5/8" long
    4 two-piece pinion differential three-speed
    1 page 149.03KB

    3-speeds have the brake drum mounted on the 11/44 (mushroom) gear. Use Section II of the service manual.

    For low resolution transmission service manual see
    For high resolution transmission service manual see

    This parts list shows the 933168 roll pin for the shifter donut 5/32" x 13/16"
    Replaced by 32121-114 spirol pin

    Model 5046 same as 5025 except for the shifter
    Model 5046 replaced by 5049 for 1965 and 5053 for 1966-1969

    Model 5046 transmission used in
    1964 model 34E
    1964 model 34R
    1964 model 604
    1964 model 654
    1964 model 704

    96 downloads

    Updated

  19. Free

    Transmission Gear Uni-drive 3-speed 1.000in axle 4-pinion 5025 1962-1964 IPL.pdf

    By gwest_ca-(File Mod)

    Model 5025
    IPL
    1" axles 2 of 3904 10-5/8" long
    4 two-piece pinion differential three-speed
    1 page 148.88KB

    3-speeds have the brake drum mounted on the 11/44 (mushroom) gear. Use Section II of the service manual.

    For low resolution transmission service manual see
    For high resolution transmission service manual see

    This parts list shows the 933168 roll pin for the shifter donut 5/32" x 13/16"
    Replaced by 32121-114 spirol pin
    3514 collar commonly called a donut
    1239 dog-point set screw 1/4-20 x 3/4"
    5278 straight shifter without collar or donut

    Models 5025 & 5046 same except for shift lever bent to clear hydraulic pump
    Model 5025 replaced 5007
    Model 5025 replaced by 5046 for 1964, 5049 for 1965 and 5053 for 1966-1969

    Model 5025 transmission used in
    1962 model 32E
    1962 model 32R
    1962 model 502
    1962 model 552
    1962 model 702

    1963 model 33E
    1963 model 33R
    1963 model 603
    1963 model 633
    1963 model 653
    1963 model 753

    1964 model 754
    1964 model 854
    1964 model 1045

    188 downloads

    Updated

  20. Free

    Transmission Gear Uni-drive 3-speed 1.000in axle 4-pinion 5007 1961 IPL.pdf

    By gwest_ca-(File Mod)

    Model 5007
    IPL
    1" axles 2 of 3904 10-5/8" long
    4 two-piece pinion differential three-speed
    4 pages 1.77MB

    3-speeds have the brake drum mounted on the 11/44 (mushroom) gear. Use Section II of the service manual.

    For low resolution transmission service manual see
    For high resolution transmission service manual see

    Model 5007 replaced by 5025 for 1962-1964, 5046 for 1964, 5049 for 1965 and 5053 for 1966-1969

    Model 5007 transmission used in
    1961 model 551
    1961 model 701

    114 downloads

    Updated

  21. Free

    Transmission Gear Uni-drive 3-speed 1.000in axle 4-pinion 5048 1965 IPL.pdf

    By gwest_ca-(File Mod)

    Model 5048
    IPL
    1" axles with gear item #20 in illustration part #5577 (Axle part number 3904 is 10-5/8" long)
    4 two-piece pinion differential three-speed
    1 page 296.39KB

    3-speeds have the brake drum mounted on the 11/44 (mushroom) gear. Use Section II of the service manual.

    For low resolution transmission service manual see
    For high resolution transmission service manual see
    New shift rails in 1965
    Model 5048 could be upgraded to a model 5053 with kit # 7168
    5048 transmission used in
    1965 model L-105 Lawn Ranger
    1965 model L-155 Lawn Ranger

    73 downloads

    Updated

  22. Free

    Transmission Gear Uni-drive 8-speed 1.125in axle 4-pinion 92-8707 1997-2001 IPL.pdf

    By gwest_ca-(File Mod)

    Model 92-8707 - (Had this as model 94-6670)
    IPL
    1-1/8" axles
    4 pinion differential eight-speed
    8-speeds have the brake drum mounted on the cluster gear shaft. Use Section V of the service manual.
    Double axle seals

    3 pages 841.06KB
    For low resolution transmission service manual see
    For high resolution transmission service manual see
    Used 1997-2001
    1997 312-8 model 73363
    1998 312-8 model 73428
    1999 312-8 model 73429
    2000 312-8 model 73429
    2001 312-8 model 73429

    96 downloads

    Updated

  23. Free

    Transmission Gear Uni-drive 8-speed 1.125in axle 8-pinion 92-8708 1997-2005 & 2007 IPL.pdf

    By gwest_ca-(File Mod)

    Model 92-8708 - (Had this as model 94-6671)
    IPL
    1-1/8" axles (Uses 2 105875 axles 13" long and 937108 Woodruff #22 keys - 1/4" x 1-3/8")
    8-pinion differential eight-speed
    8-speeds have the brake drum mounted on the cluster gear shaft. Use Section V of the service manual.
    Double axle seals
    3 pages 842.49KB

    For low resolution transmission service manual see
    For high resolution transmission service manual see
    Used 1997-2005 and 2007
    1997 314-8 model 73402
    1997 416-8 model 73422
    1997 416-8e model 73441
    1998 314-8 model 73448
    1999 314-8 model 73449
    2000 314-8 model 73449
    2001 314-8 model 73449
    2002 315-8 model 73450
    2003 315-8 model 73450
    2004 315-8 model 73450
    2005 GT-Classic model 73450
    2007 GT-Classic model 73450

    107 downloads

    Updated

  24. Free

    Transmission Gear Uni-drive 8-speed 1.125in axle 8-pinion 110995 1985-1993 IPL.pdf

    By gwest_ca-(File Mod)

    1986 Model 110996
    IPL
    4 pages 2MB

    1991 Model 110995
    IPL
    1-1/8" axles (Uses 2 105875 axles 13" long and 937108 Woodruff #22 keys - 1/4" x 1-3/8") [From Toro ipl 310-8 models sn 11752-11755 use 937097 Woodruff #15 key 1/4" x 1"]
    8 one-piece pinion differential eight-speed
    8-speeds have the brake drum mounted on the cluster gear shaft. Use Section V of the service manual.
    Single axle seal
    4 pages 189.80KB

    For low resolution transmission service manual see
    For high resolution transmission service manual see
    110995 used 1985-1993 with 1-1/8" axles
    1985 310-8 model 21-10K801 - * Uses 1533 differential carrier bearings * (1-1/2x2-1/2x1/2in.) -
    (Serial numbers 11752, 11753, 11754 and 11755 used the 110995 transmission with 8 pinions and 1-1/8" axles - Source 1991 ipl)

    1985 314-8 model 21-14K801 - * Uses 1533 differential carrier bearings * (1-1/2x2-1/2x1/2in.) - Guessing this one is correct
    1985 416-8 model 31-16K801 - * Uses 1533 differential carrier bearings * (1-1/2x2-1/2x1/2in.)
    1985 417-8 model 31-17K801 - * Uses 1533 differential carrier bearings * (1-1/2x2-1/2x1/2in.)

    1986 414-8 model 31-14K801 - * Uses 111199 differential carrier bearings * (SKF 6008-C3 40x68x15mm)
    1986 416-8 model 31-16K802 - * Uses 111199 differential carrier bearings * (SKF 6008-C3 40x68x15mm)
    1986 417-8 model 31-17K802 - * Uses 111199 differential carrier bearings * (SKF 6008-C3 40x68x15mm)

    1987 414-8 model 31-14K802 - * Uses 111199 differential carrier bearings * (SKF 6008-C3 40x68x15mm)
    1987 416-8 model 31-16K803 - * Uses 111199 differential carrier bearings * (SKF 6008-C3 40x68x15mm)
    1987 418-8 model 31-18K801 - * Uses 111199 differential carrier bearings * (SKF 6008-C3 40x68x15mm)

    1988 414-8 model 31-14K803 - * Uses 111199 differential carrier bearings * (SKF 6008-C3 40x68x15mm)
    1988 416-8 model 31-16K804 - * Uses 111199 differential carrier bearings * (SKF 6008-C3 40x68x15mm)

    1989 414-8 model 31-14K804
    1989 416-8 model 31-16O801

    1990 312-8 model 31-12K801 - Toro lists this model as using the 110996 with 1" axle 4-pinion differential which is wrong
    1990 312-8e model R1-12K802 - Exported model
    1990 316-8e models R1-16O801 and R1-16O802 - Exported models
    1990 416-8 model 31-16O802
    1990 520-8 model 41-20O801

    1991 312-8 model 31-12K802 Serial 1900001-1999999
    1991 416-8 model 31-16O803 Serial 1900001-1999999

    1992 312-8 model 31-12K804 Serial 2900001-2999999
    1992 312-8e model R1-12K804 Serial 2900001-2999999 - Exported model
    1992 316-8e model R1-16O804 Serial 2900001-2999999 - Exported model
    1992 416-8 model 31-16O804 Serial 2900001-2999999

    Toro lists the following as using 92-8708 transmission with 8 pinions and double axle seals but the parts lists have 110995 with 8 pinions and a single axle seal.
    1993 314-8 model 73400 Serial 3900001-3999999
    1993 416-8 model 73420 Serial 3900001-3999999
    1993 416-8e model 73440 Serial 3900001-3999999 - Exported model

    415 downloads

    Updated

  25. Free

    Transmission Gear Uni-drive 1958-2007 Ball Bearing.jpg

    By gwest_ca-(File Mod)

    1986 was the model year the differential carrier bearings changed from 1533 to 111199.

    1986 308-8 model 21-08K801 - * Uses 111199 differential carrier bearings * (SKF 6008-C3 40x68x15mm) Used model 110996 transmission with 1" axles
    1986 308-8 model 21-08K802 - * Uses 1533 differential carrier bearings * (1-1/2x2-1/2x1/2in.) Used model 110996 transmission with 1" axles

    1986 310-8 model 21-10K802 - * Uses 111199 differential carrier bearings * (SKF 6008-C3 40x68x15mm) Used model 110996 transmission with 1" axles
    1986 310-8 model 21-10K803 - * Uses 1533 differential carrier bearings * (1-1/2x2-1/2x1/2in.) Used model 110996 transmission with 1" axles

    1986 312-8 model 21-12K802 - * Uses 111199 differential carrier bearings * (SKF 6008-C3 40x68x15mm) Used model 110996 transmission with 1" axles
    1986 312-8 model 21-12K803 - * Uses 1533 differential carrier bearings * (1-1/2x2-1/2x1/2in.) Used model 110996 transmission with 1" axles

    1986 414-8 model 31-14K801 - * Uses 111199 differential carrier bearings * (SKF 6008-C3 40x68x15mm) Used model 110995 transmission with 1-1/8" axles
    1986 416-8 model 31-16K802 - * Uses 111199 differential carrier bearings * (SKF 6008-C3 40x68x15mm) Used model 110995 transmission with 1-1/8" axles
    1986 417-8 model 31-17K802 - * Uses 111199 differential carrier bearings * (SKF 6008-C3 40x68x15mm) Used model 110995 transmission with 1-1/8" axles

    1986 512-D model B1-12R801 - * Uses 111199 differential carrier bearings * (SKF 6008-C3 40x68x15mm) Used model 110996 transmission with 1" axles
    1986 512-D model C1-12R801 - * Uses 111199 differential carrier bearings * (SKF 6008-C3 40x68x15mm) Used model 110996 transmission with 1" axles



    63 downloads

    Updated



×
×
  • Create New...
